Product Description

Yanhua Mini ACDP Programming Master Full Configuration

Yanhua Mini ACDP Key Programming Master full configuration includes eeprom function, CAS1-CAS4/FEM/BDC key programming, odometer reset, DME ISN reading& writing, eeprom 35080/35160DO WT reading/writing, Fujitsu CPU MB91F functions, MQB/MMC Instrument, Refresh BMW Keys, BMW FRM Programming and Land Rover Key Programming, Porsche BCM key programming, Clear EGS ISN on both 6HP & 8HP and Volvo Key Programming.

Yanhua Mini ACDP Highlights:

Test car NO longer needs engines
YANHUA car keys programming NO longer need soldering iron
Car locksmith NO longer needs soldering work.
The first in the world
Programming no need soldering

Yanhua Mini ACDP IMMO/Mileage Programming

No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin

Operating System:

IOS: iPhone/iPad/MAC
IOS System Requirement:
1. System Version: 9.0 or above
2. Cell Phone Models: iPhone 6 or above
3. Running Memory Ram: >2G
4. Storange Space rom: >1.5G

Android: Xiaomi, OPPO,Samsung etc Qualcomm chipset mobile phones (DOESN'T support Huawei)
Android System Requirement:
1. System Version: 5.0 or Above
2. Running Memory Ram: >2G
3. Storage Space Rom: >1.5G

PC Version: PC Software Free Download
For installation instruction, please refer to our official blog How to Use Yanhua Mini ACDP PC Version

Yanhua Mini ACDP IOS App Installation Instruction
Yanhua Mini ACDP Android App Installation Instruction
Yanhua Mini ACDP IOS Version Import Data to PC Instruction
Yanhua Mini ACDP Android Version Import Data to PC Instruction

ICP: Memory and MCU programming In Circuits



MCU programming in Circuits


Yanhua Mini ACDP Functions

1. Memory programming:
Support 93/24/25/35/95 series EEPROM in circuit (ICP)and on board(OBP)programming and parts of Freescale/ NEC MCU in circuit programming(ICP).

2. BMW module programming:
(1) Support cas1-cas4+and FEM/BDC IMMO key programming, mileage reset, program recovery.
(2)BMW engine ECU data reading and ISN code reading
(3) Newly Add CAS4/CAS4+ OBD Read/Write Function

3. VW module programming. MMC instrument
4. Instrument mileage and airbag ECU reset/maintenance is under development.
5. Mercedes, BMW, VAG Audi, Land Rover, Porsche, Volvo and various models are upgraded successively

Module1 BMW CAS1-CAS3+Key Programming via OBD
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys Lost

Module1 BMW CAS4/CAS4+
Read CAS4 EEPROM without soldering/welding
Add Keys without soldering/welding
Reset Mileage without soldering/welding
Back up or recover CAS without soldering/welding
All keys Lost without soldering/welding
Newly Add CAS4/CAS4+ OBD Read/Write Function

Module2 BMW FEM/BDC
All keys lost without soldering/welding
Add keys without soldering/welding
Delete Keys without soldering/welding
Enable/Disable keys without soldering/welding
Read Key ID
Repair/Replace FEM Module without soldering/welding
Reset Mileage without soldering/welding
With this authorization, you can change VIN in FEM/BDC, check the instruction here  How to use Yanhua Mini ACDP to change VIN in FEM/BDC

Module3 Read and Write ISN Code
N20(mevd1724, mevd172P, mevd1729), N13(mevd1725, ), N55(mevd172, mevd1726, mevd172G, mevd172S, MEVD17, ), MSV80, MSD81, MSD85, MSD85HY, MSD87, MSV90, MEVD1728(s63), mev1722, med172, mevd1727, dde701_edc17c50, BMSX….

Module4 BMW 35080, 35160DO WT Read & Write
Read and write BMW M35080, 35160DO WT etc EEPROM, erase 080DOWQ, 080DOWT, 160DOWQ, 160DOWT, M35128 models.

Module5 Fujitsu CPU MB91FXX Read & Write
Supports Honda FIT, Vezel, Fifth generation Hyundai Sonata, Kia K3/K5 etc Fujitsu CPU MB91F series read & write function.

Module6 MQB/MMC Instrument Module
Support parts of VDO mileage adjustment of VW MQB platform via OBD,and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.
Please check on our official blog How to use Yanhua Mini ACDP do VW MQB & Passat MMC mileage correction

Module7 Refresh BMW Keys Module
Refresh BMW E chassis/F chassis key to make BMW keys can be used repeatedly.
Please refer to our official blog: How to use Yanhua Mini ACDP refresh BMW keys

Module8 BMW FRM FRM Footwell Module
Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.
Please refer to our official blog: How to use Yanhua Mini ACDP do BMW FRM programming

Module 9 Land Rover Key Programming Support KVM from 2014-2018 Add Key & All Key Lost
This is Module9 Land Rover for Yanhua Mini ACDP, authorizations with adapters. Support KVM from 2014-2018, work on both add key and all key lost.
Please refer to our official blog: Yanhua Mini ACDP program key on Land Rover KVM (mc9s12xeq384 112Pin)

Module10 Porche Key Programming from 2010-2018 Add Key & All Key Lost

Module11 Clear EGS ISN Support both 6HP & 8HP
For connecting BMW 6HP/8HP gearbox
EGS State
Clear ISN
Reset Adaptation
Backup Coding
Recover Coding

Module12 Volvo Key Programming
Support Volvo List:
S60 (2010-2018)
S80 (2009-2016)
XC60 (2009-2018)
V60 (2011-2017)
V70 (2009-2016)
XC70 (2010-2016)

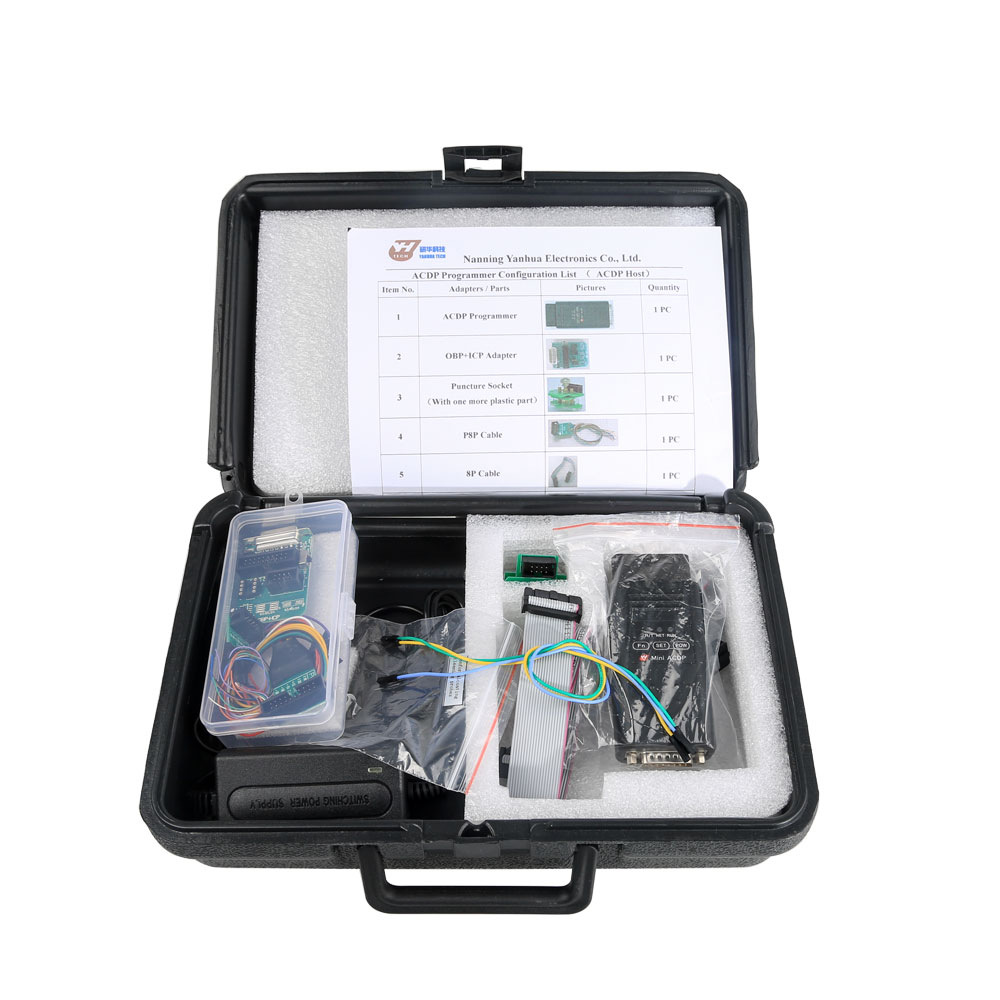

Yanhua Mini ACDP Master Basic Configuration Package List:

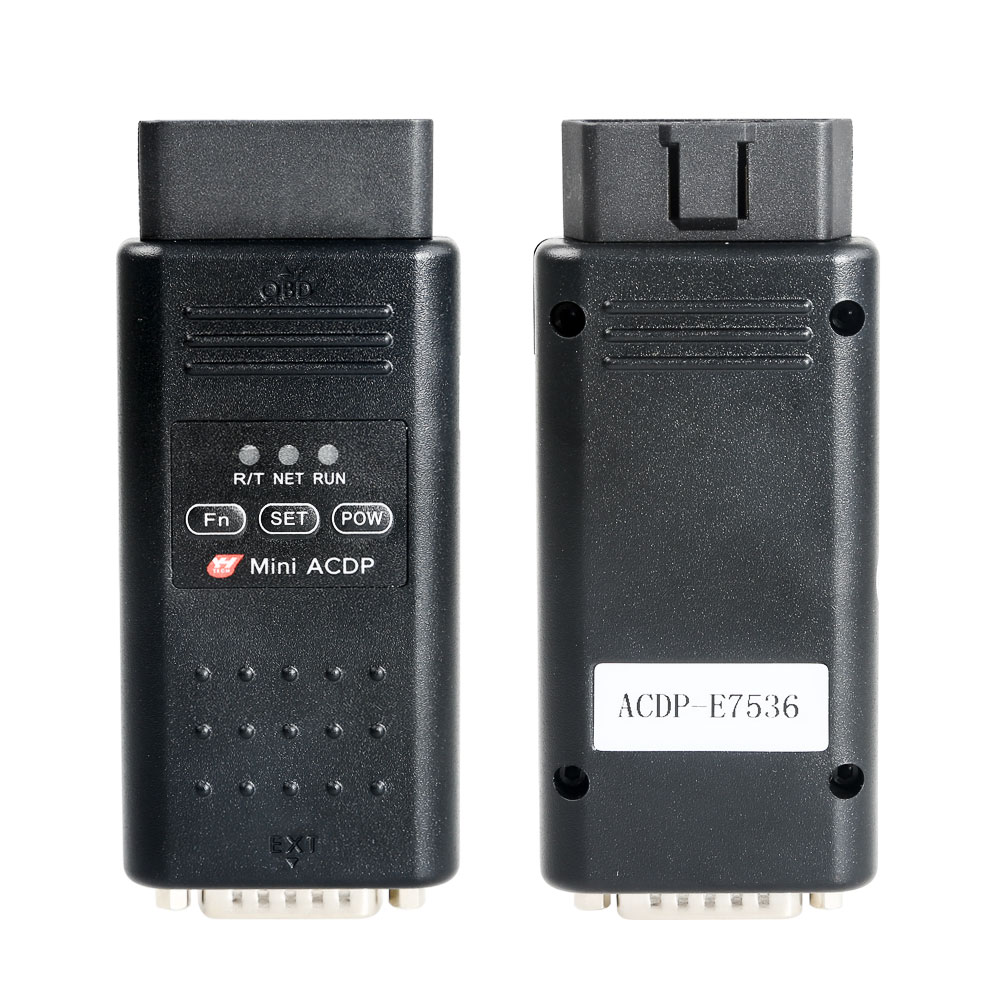

1pc x ACDP Programmer Master
1pc x OBP+ICP adapter
1pc x Puncture socket
1pc x P8P ribbon cable
1pc x 8P cable
1pc x 20P cable
1pc x 12V power adapter
3pcs x paint surface cleaning needles (1.0mm,0.8mm,0.5mm)
1pc x BAV-KEY Adapter

Adaper List (Module1 SK247-1)
1pc x BDM01 adapter
1pc x BMW-CAS3 interface board
1pc x BMW-CAS4 interface board
1pc x BMW CAS2/3/4 interface
1pc x CAS3 firmware package
1pc x CAS4 firmware package

Adapter List (Module2 SK247-2)
1pc x FEM bridge
1pc x BDC bridge
1pc x Desktop OBD transfer board
1pc x BMW FEM/BDC test platform
1pc x Single-pin double-head cable
1pc x FEM bridge firmware package
1pc x BDC bridge firmware package

Adapter List (Module3 SK247-3)
1pc x BMW-N13 port board
1pc x N20 caliper for opening the hole of shell
1pc x N13 firmware package of interface board
1pc x P-Can Cable

Adapter List (Module4 SK247-4)
1pc x Yanhua Mini ACDP Programming Master BMW 35080 & 35160DO Adapter

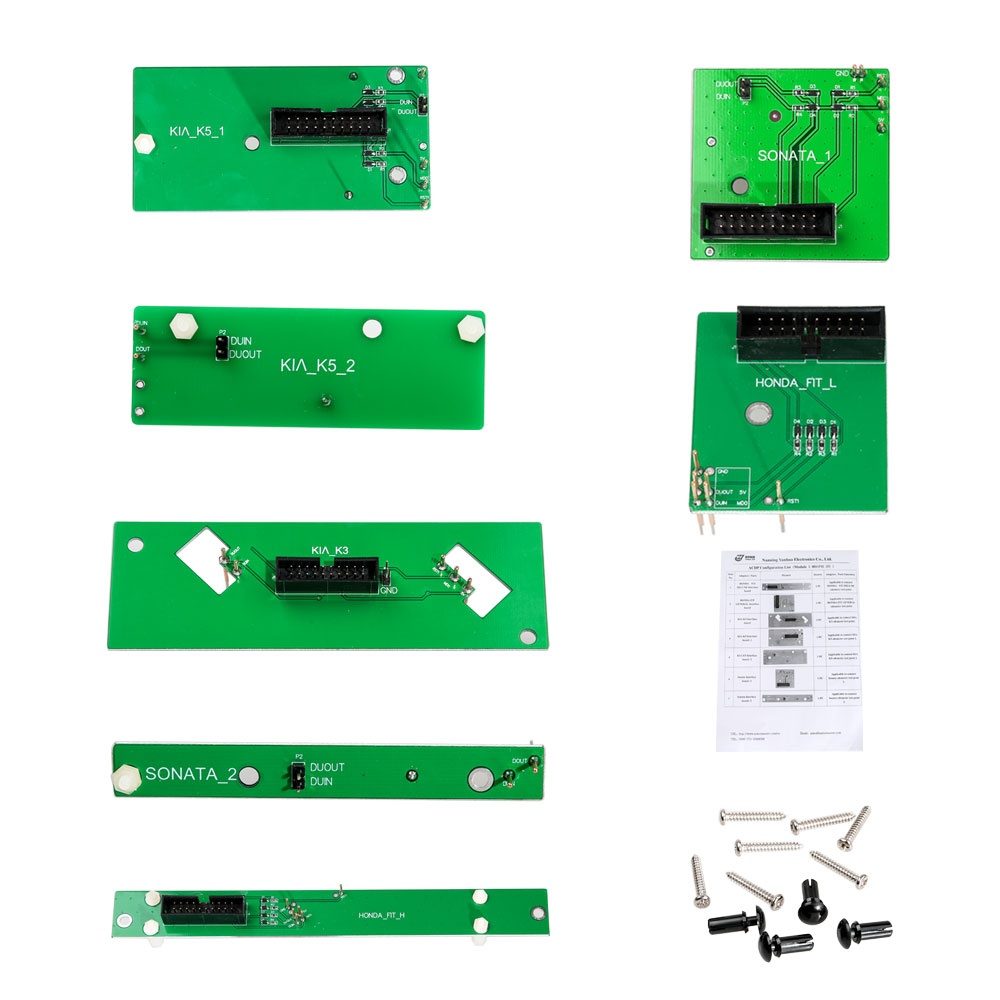

Adapter List (Module5 SK247-5)
1pc x HONDA FIT DELUXE Interface board
1pc x HONDA FIT GENERAL Interface board
1pc x KIA K3 Interface board
1pc x KIA K5 Interface board -1
1pc x KIA K5 Interface board -2
1pc x Sonata Interface board -1
1pc x Sonata Interface board -2
4pcs x KIA K3 Interface board Nylon rivets package (R5105)
7pcs x MB91FXX CPU General screw package (M3×20mm)

Adapter List (Module 6 SK247-6)
1pc x VW Passat MMC instrument interface board
6pcs x MQB/MMC Copper pillar package (Single head six angle stud M3*14+6mm)
1pc x PCF-Key Adapter

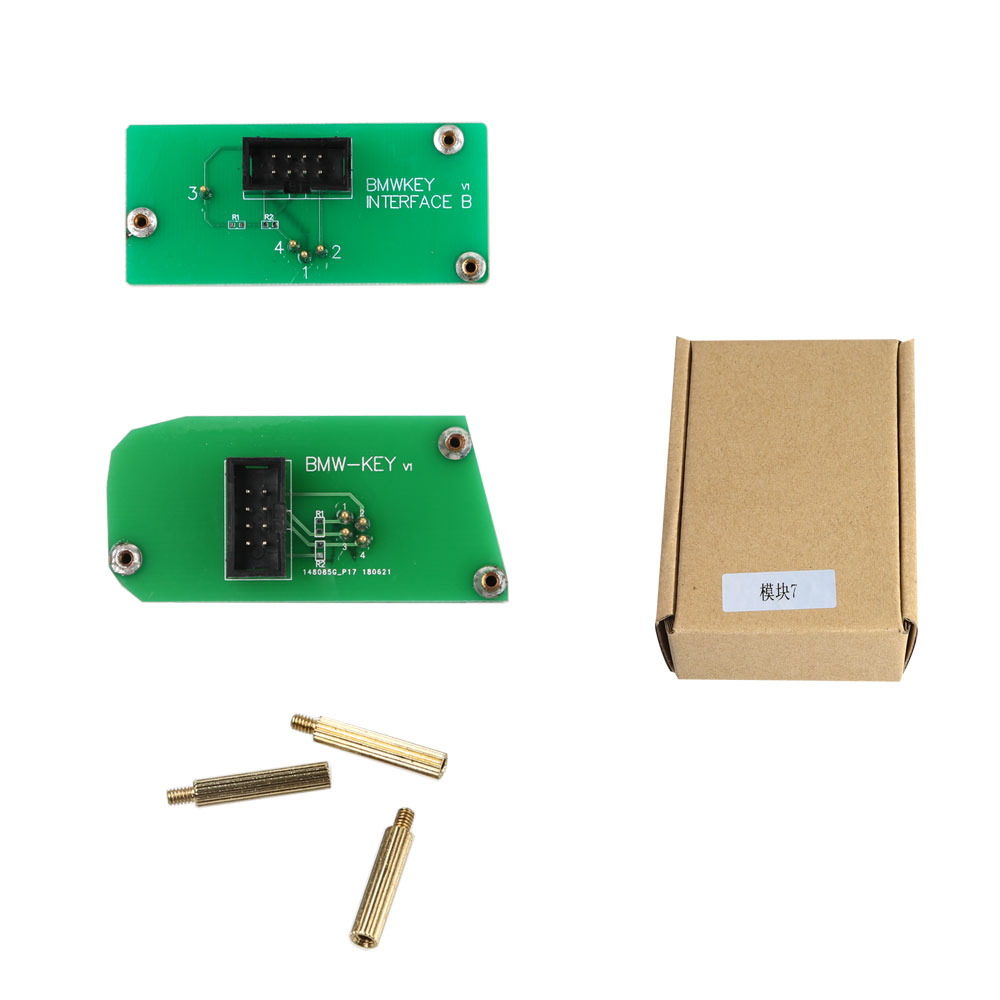

Adapter List (Module 7 SK247-7)
1pc x BMW F chassis（HUFXXXX）Key interface board
1pc x BMW F chassis（5WKXXXX）Key interface board
1pc x BMW Key simulator
6pcs x BMW Key Refresh Module Copper Pillar Package (M2*14+3)

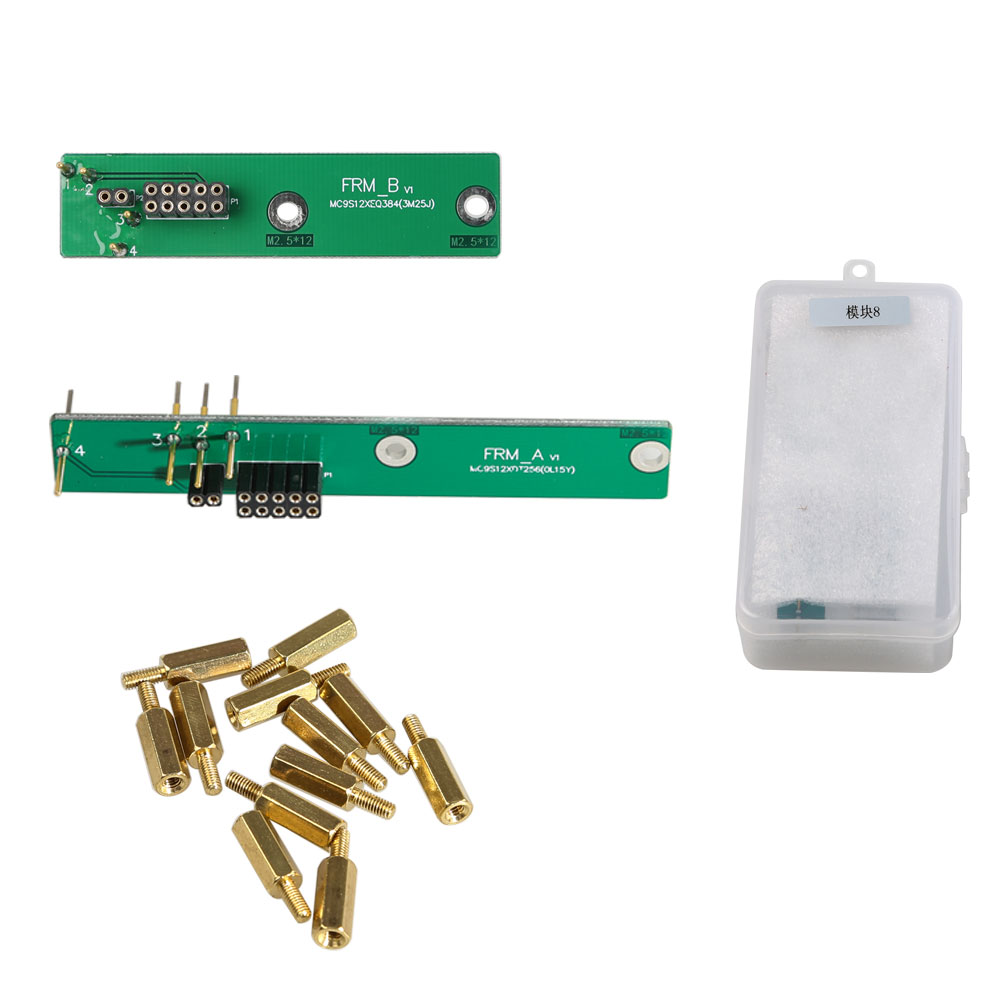

Adapter List (Module8 SK247-8)
1pc x BMW FRM module (FRM Footwell module), 0L15Y chip Interface board
1pc x BMW FRM module (FRM Footwell module), 3M25J chip Interface board
12pcs x BMW FRM module (FRM Footwell module), Copper pillar package (Single head six angle stud M2.5*12+6mm）

Adapter List (Module9 Land Rover SK247-9)
1pc x OBP+ ICP Adapter
1pc x BDM Adapter
3pcs x KVM Module

Adapter List (Module10 Porsche Key Programming SK247-10)
1pc x Porsche BCM Module Interface board
1pc x Porsche Key refresh Interface board
2pcs x Porsche BCM Module Copper Pillar Package (M4*12+6mm)
1pc x (M4*6+6)PC

Adapter List (Module11 Clear EGS ISN Support both 6HP & 8HP)
1pc x BMW gearbox module interface board

Adapter List (Module12 Volvo Key Programming)
1pc x VOLVO Module Interface Board
