Yanhua Mini ACDP Module15 Mercedes Benz DME Clone Work via Bench Mode with License A100



Yanhua Mini ACDP Module15 Mercedes Benz DME Clone Work via Bench Mode with License A100

Module Function:

X1: MB-DME-Adapter X1 supports DME clone of Mercedes-Benz 152/157/274/276/278(MED17.7.3), 272/276(MED17.7.3.1),276/278(MED17.7.1),etc
X2: MB-DME-Adapter X2 supports DME clone of Mercedes-Benz 133/270/274(MED17.7.2),etc

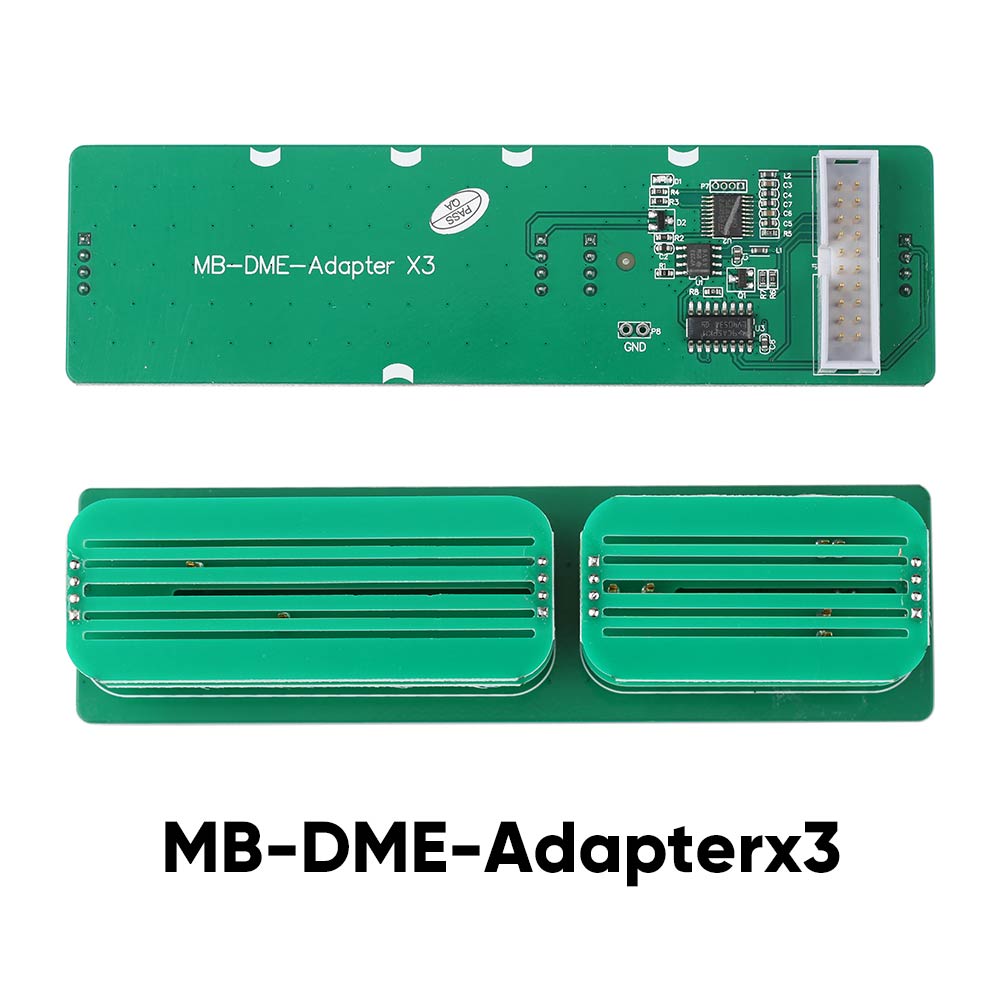

X3: MB-DME-Adapter X3 supports DME clone of Mercedes-Benz 260/264(MED17.7.7),etc
X4: MB-DME-Adapter X4 supports DME clone of Mercedes-Benz diesel vehicle 642(EDC17CP01), 642/651(EDC17CP46), 626/622/651(EDC17C66), 651/642(EDC17CP57), 651/642(EDC17CP10), etc
X5: MB-DME-Adapter X5 supports DME clone of Mercedes-Benz 272/279(ME17.7), etc

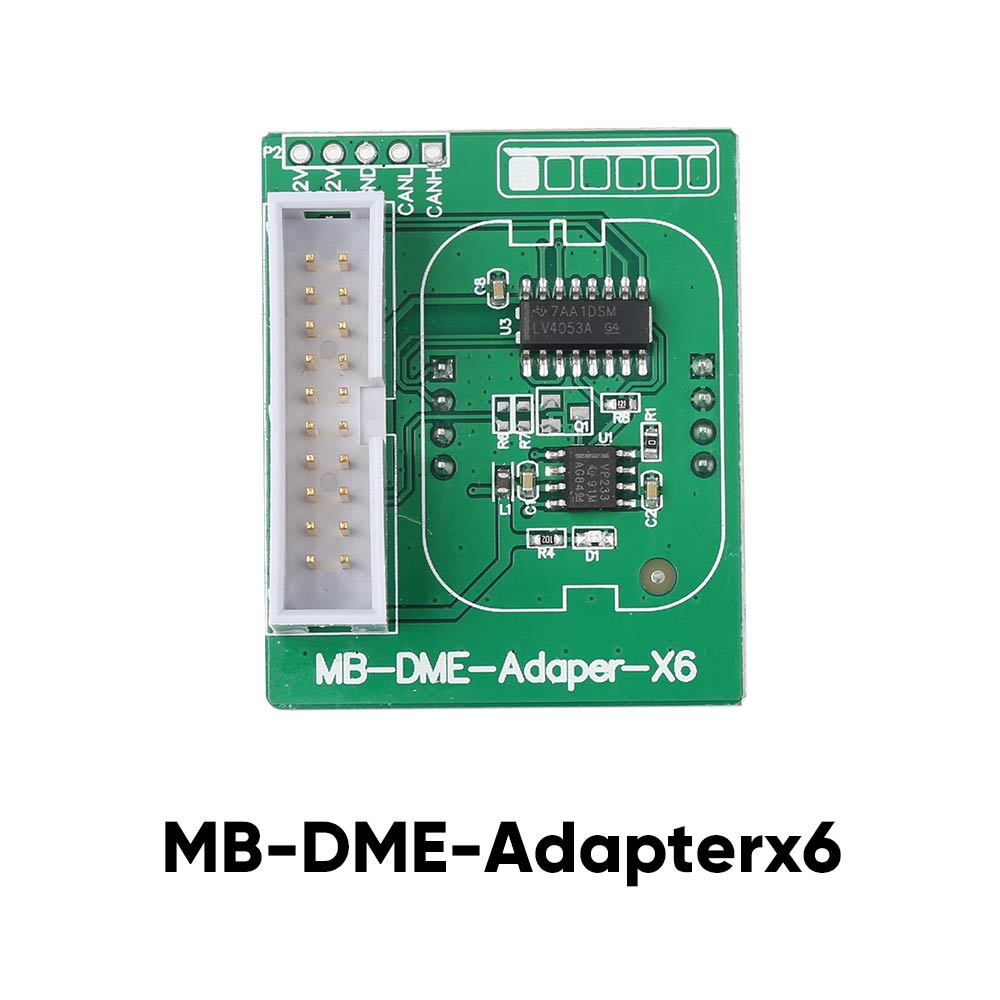

X6: MB-DME-Adapter X6 supports DME clone of Mercedes-Benz diesel vehicle 642/654(MD1CP001), etc

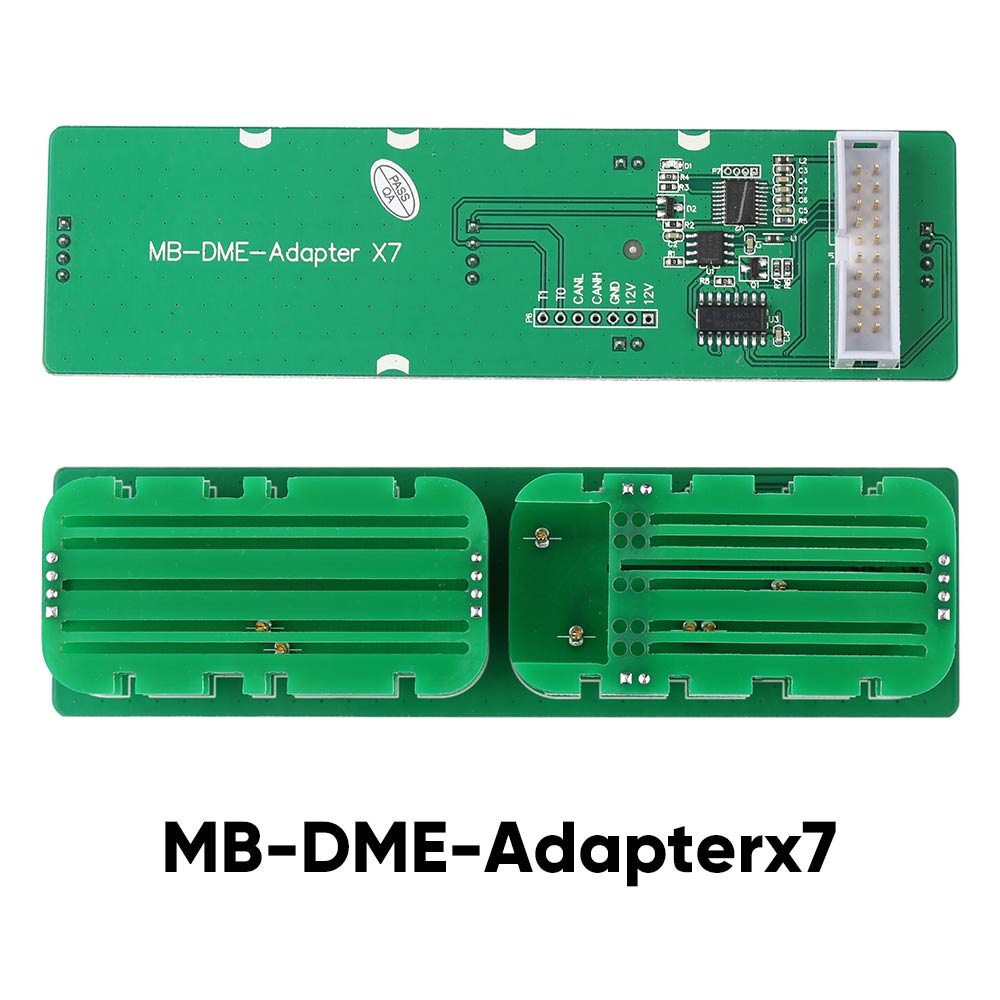

X7: MB-DME-Adapter X7 supports DME clone of Mercedes-Benz 177/178(MED17.7.5), etc

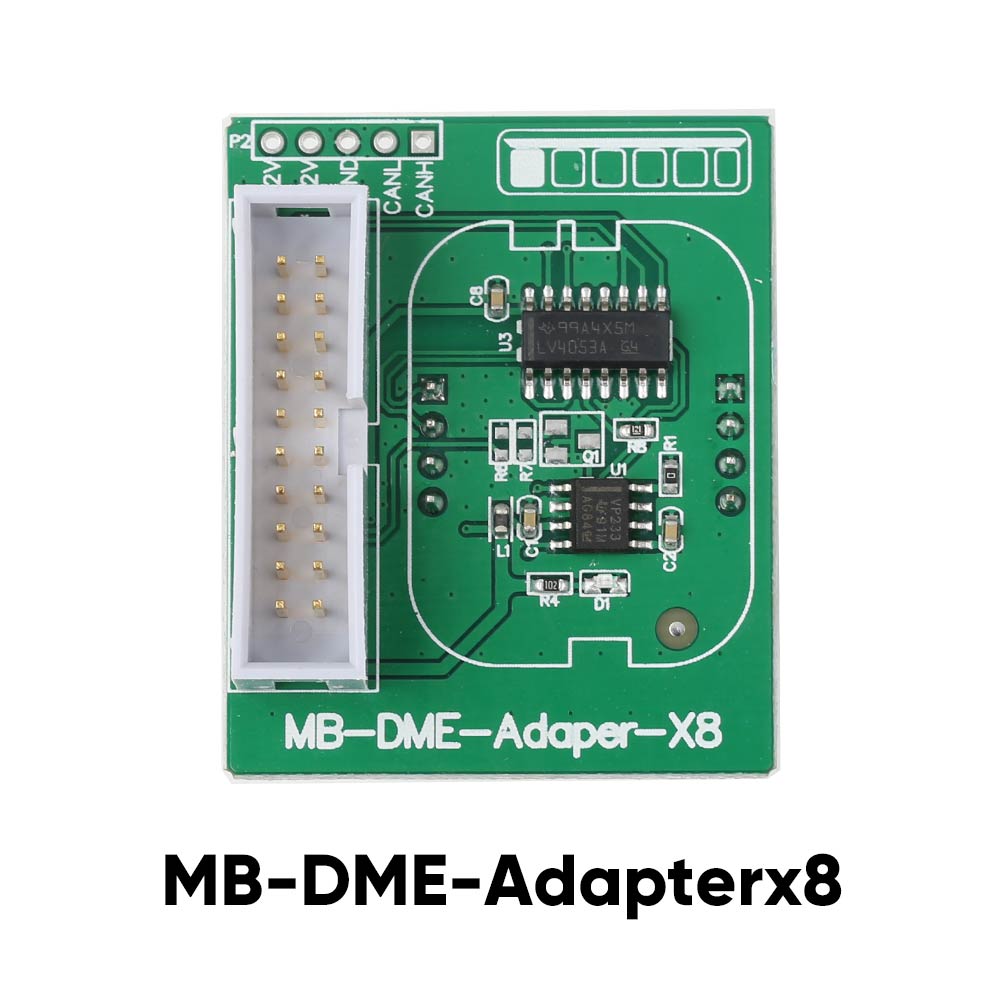

X8: MB-DME-Adapter X7 supports DME clone of Mercedes-Benz GLS/GT(MG1CP002),etc

Module Advantages:


1. No need to open DME shell, no need to drill hole on DME, no need to plug wire.

2. The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.



Software Display:




Interface Connection Diagram:
