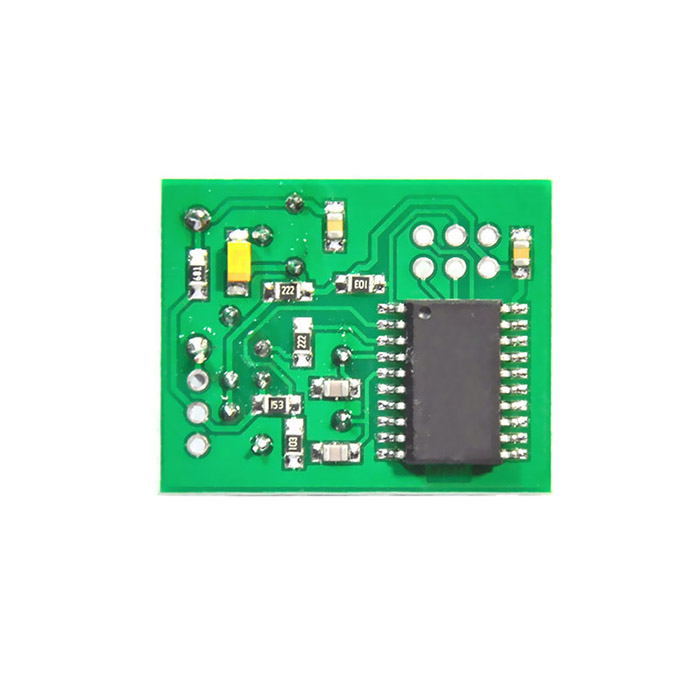

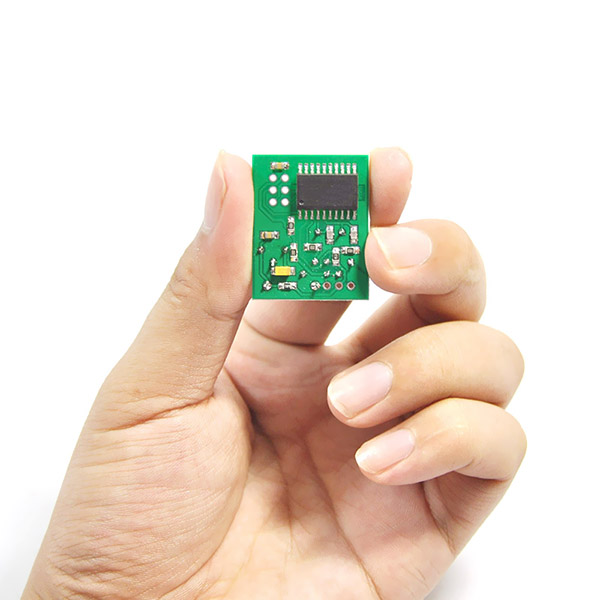

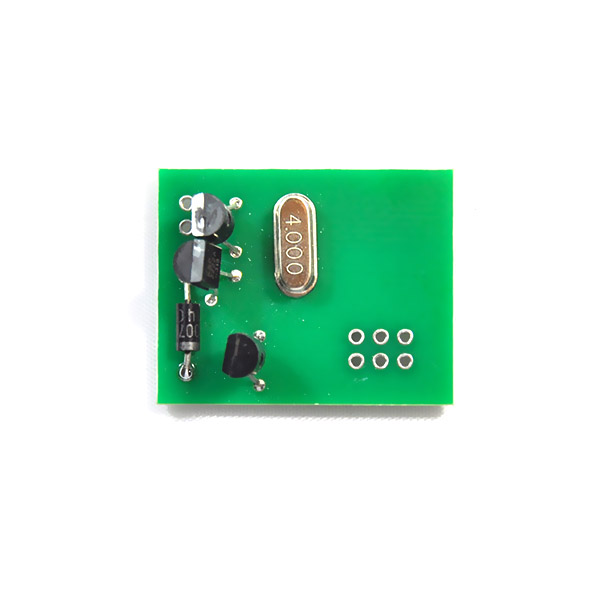

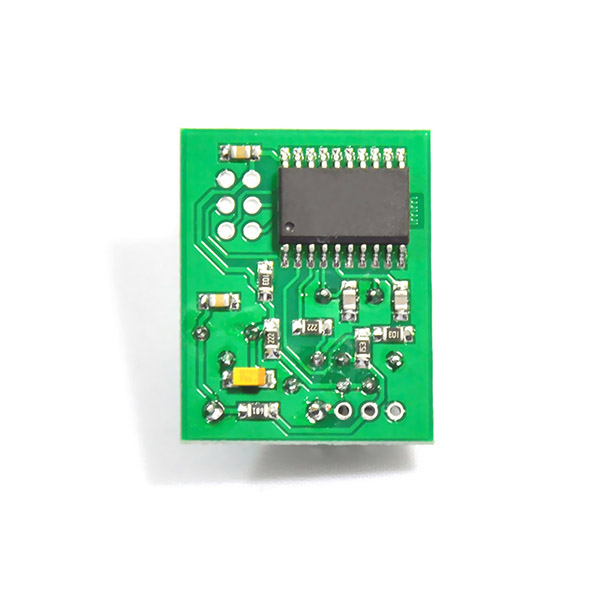

VAG IMMO Emulator

Can emulate good working immobiliser for any VW, Audi, Seat, Skoda engine control unit (including diesel pumps) to year 2000 (all kind of IMMO1 and IMMO2). This tool can by useful for car tuning specialist, when new type motor are installed in old vehicle and you need disable original immobiliser function in engine ECU.
Can replace defective immobiliser unit (very common problem in older cars) on VW Golf III, Passat B4-B5 to year 2000 , Sharan 1996 - 2001, T4, T5 to year 2000, Seat to year 2001, Skoda to year 2001.

Connection diagram:

For cars with separated immobilizer box, short W and K lines and remove

immobilizer box.

For cars with dashboard immobilizer, cut W line from dashboard.

VW Golf III, Passat B4

VW Sharan 98, Lupo 98, Polo 98, T4

Immobilizer box side

VW LT 35
