Features

* Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals

* Receives both 315MHz and 433MHz signals

* Reads / writes sensor ID from vehicle ECU

* Reads / clears codes of TPMS system and resets malfunction indicator light

* Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information

* Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.

* Retrieves TPMS ECU information

* Performs actuation tests and special functions

* Programs vehicle ECU to learn sensor IDs and positions

* Capable of programming single tires for Chrysler, Renault, and Citroen

* Checks Remote Keyless Entry (Key FOB) for transmissions

* Pre-selection process offers faster activation and diagnostics

* Provides visual and audible responses to confirm sensors are working properly

* On-screen code definitions

* Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions

* Proper LF signal to prevent being fooled by other RF signals

* Built-in rechargeable Li-polymer battery

* Automatic power-off to preserve battery life

* Multilingual support: English, French, and Spanish, etc.

* One year free update on the internet via USB port

* Ergonomic design features strong housing and protective rubber boot

Specifications

Display: TFT color display (320 x 240 dpi)

Power: 3.7V Li-polymer battery

Operating Temperature: 0 to 50掳C (32 to 122 掳F)

Storage Temperature: -20 to 70掳C (-4 to 158 掳F)

Length\Width\Height: 202.2mm(7.96")\106.7mm(4.20")\37.7mm(1.48")

Weight: 0.4kg (0.88lb)

Accessories

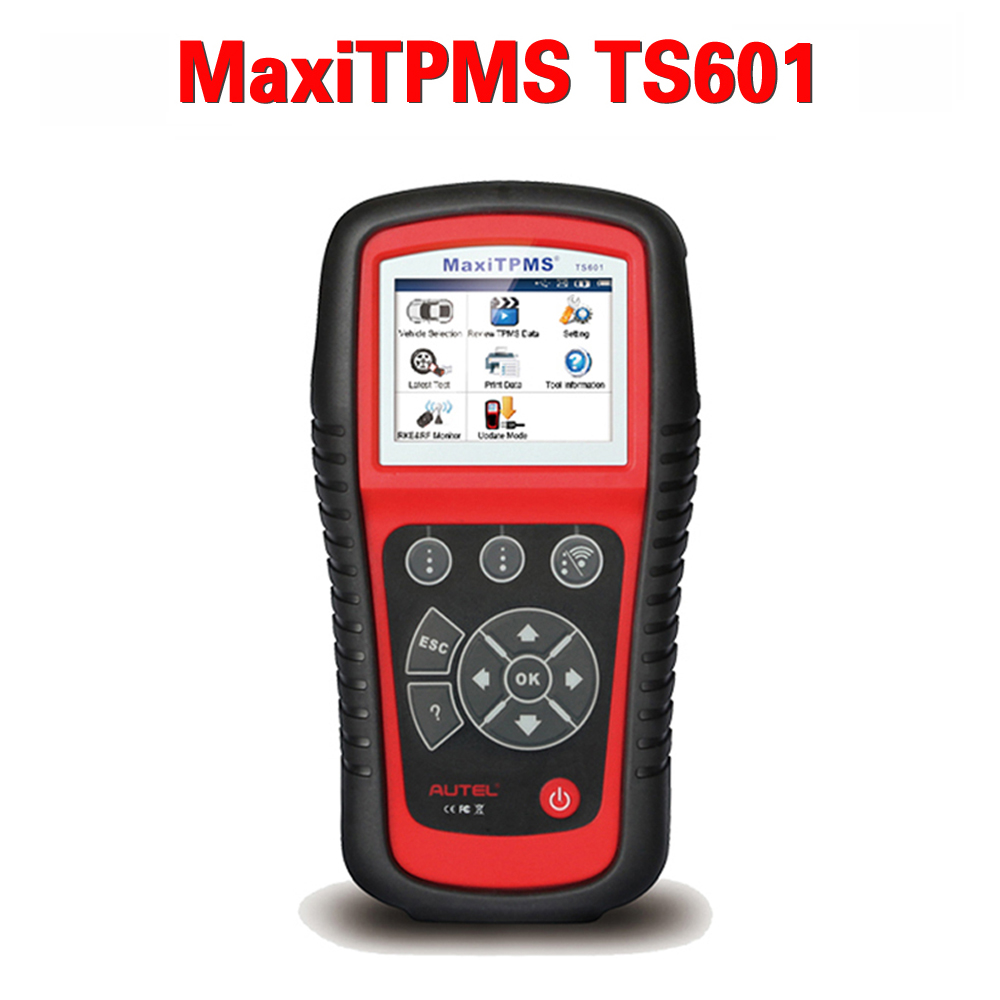

* 1 x MaxiTPMS TS601

* 1 x SD Card

* 1 x CD

* 1 x Charger

* 1 x Magnet

* 1 x OBDII Cable

* 1 脳 User's Manual
