Digital Inspection Videoscopes
/upload/20140303093319PicURL.jpg
Digital Inspection Videoscope MaxiVideo MV400 (5.5mm Head)
·Product Category:Digital Inspection Videoscopes
·Item No:CD110058
·Product Model:
·Product Weight:2.2kg
·MOQ:1PCS
·Retail Price:US$160
·In Stock:10
Qty:
Details Description

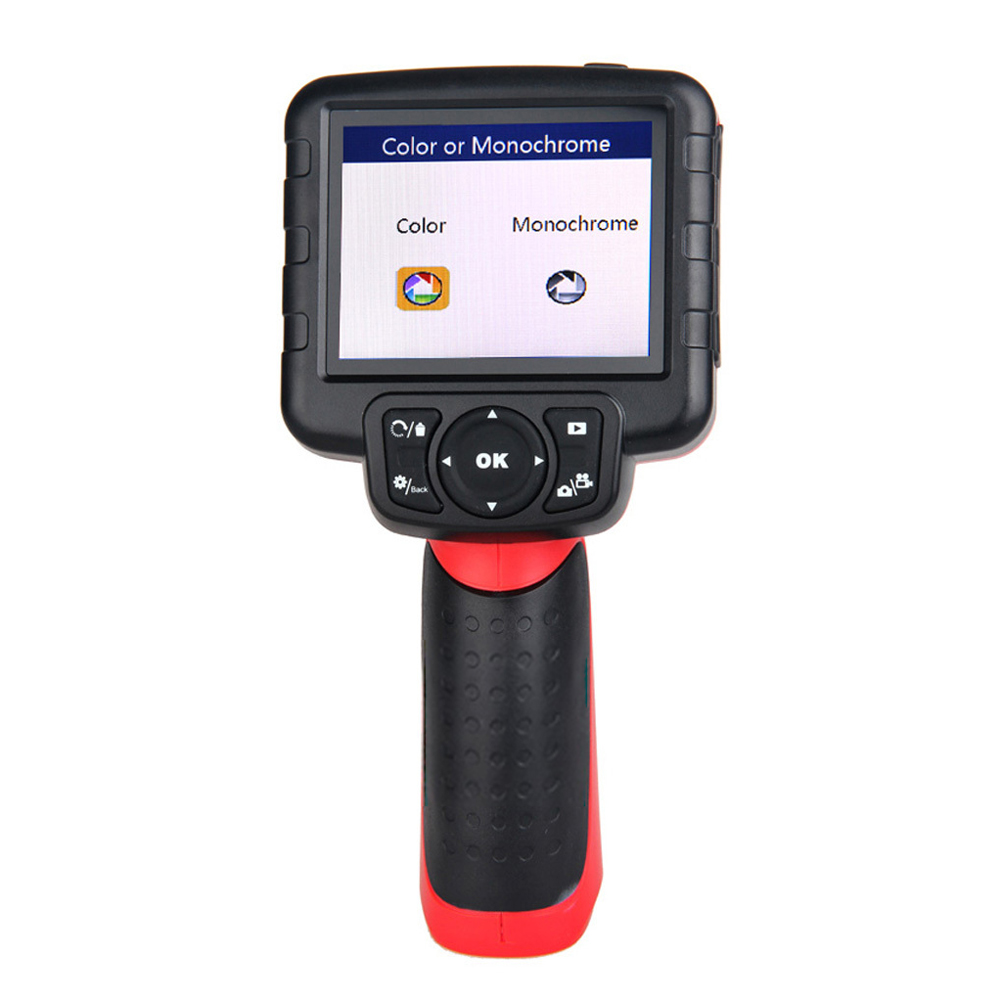

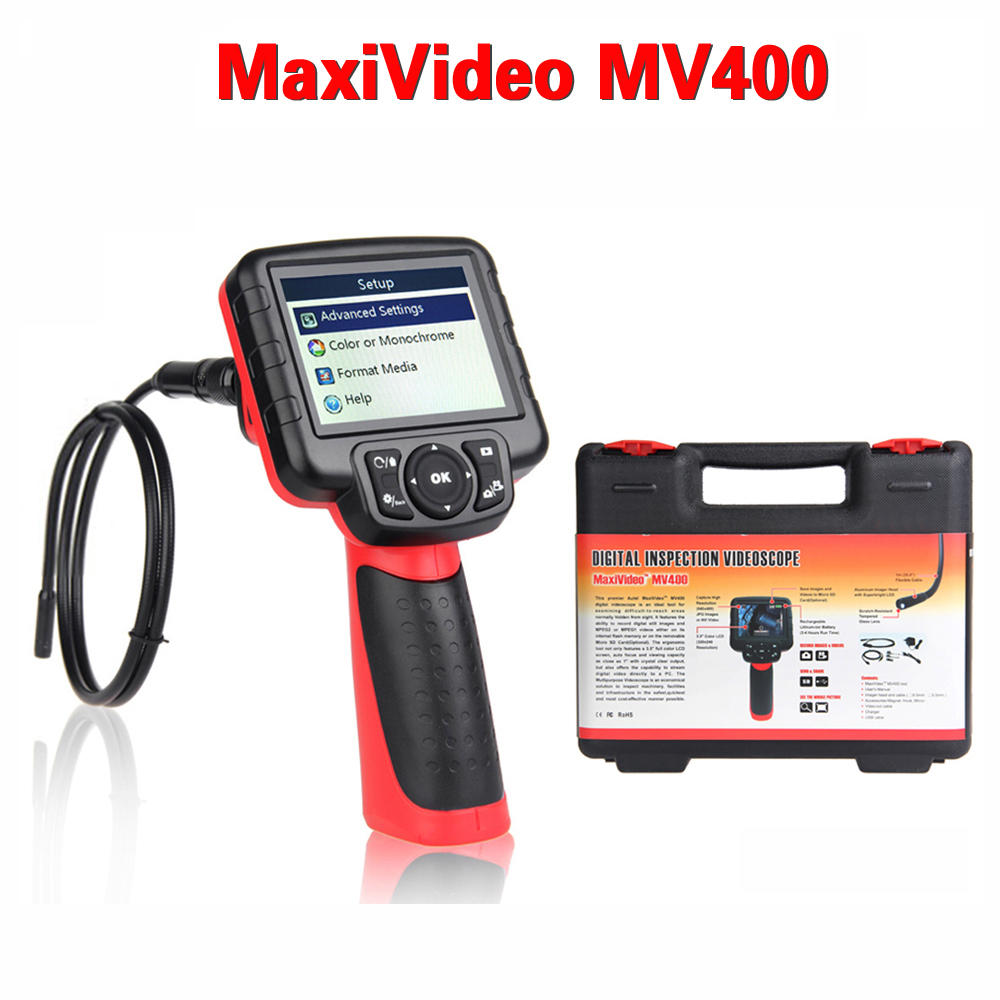

Digital Inspection Videoscope MaxiVideo MV400 (5.5mm Head)



This premier Autel MaxiVideo MV400 digital videoscope is an ideal tool for examining difficult- to- reach areas normally hidden from sight. It features the ability to record digital still images and MPEG2 or MPEG1 videos either on its internal flash memory or on the removable Micro SD Card (Optional). The ergonomic tool not only features a 3.5" full color LCD screen, auto focus and viewing capacity as close as 1" with crystal clear output, but also offers the capability to stream digital video directly to a PC. The Multipurpose Videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.




Features

* Records and plays back still images and video clips

* 3.5'' high resolution full color LCD display (320 * 240)

* Easy-to-use, multi-language interface

* Wide camera angle for images with 640 * 480 resolution

* With optional removable Micro SD cards, saves images and videos to take with anywhere

* On-screen horizontal/vertical reverse

* 5x digital zoom for increased viewing

* Mini USB connector for uploading images and videos to a computer

* Narrow probe diameter available in either 8.5mm(0.33") or 5.5mm(0.22") and fits most spark plug holes

* White LED to illuminate the inspection area, with illumination control

* Views objects as close as 1"

* Oil and scratch resistant tempered glass lens

* 1M (39.4") semi-rigid, but flexible watertight shaft

* Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use

* Ergonomic and durable tool housing

* One-year limited warranty




Specifications

Recommended use: Indoor

Optimal viewing Distance: 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head

Image capture: JPG images (640 x 480) AVI videos (320 x 240)

Screen type display: 3.5'' TFT LCD

Display resolution: 320 x 240

Power supply: Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)

Tested battery life: 3-4 hours of continuous use

Dimensions: 199 x 100 x 178mm (7.83" x 3.94" x 7.0")

Recording medium: Micro SD card (Micro SD card is optional and not included)

Imager head: 5.5mm(0.22") is standard

Waterproof: Imager head and cable to 3m (10')

Additonal ports: USB, video out (TV-out) port

Operating temp.: Main unit: 32 F to 113 F (0 C to 45 C); Cable: 14 F to 176 F (-10 C to 80 C)

Storage temp.: -4 F to 158 F (-20 C to 70 C)

Video output: RCA

TV out: NTSC, PAL




Accessories

1 x User's manual

1 x Protective carrying case

1 x Imager head and cable (5.5mm is standard)

1 x Magnet, hook and mirror (optional)

1 x Charger

1 x USB cable

1 x Video out-cable ( TV-out cable)
