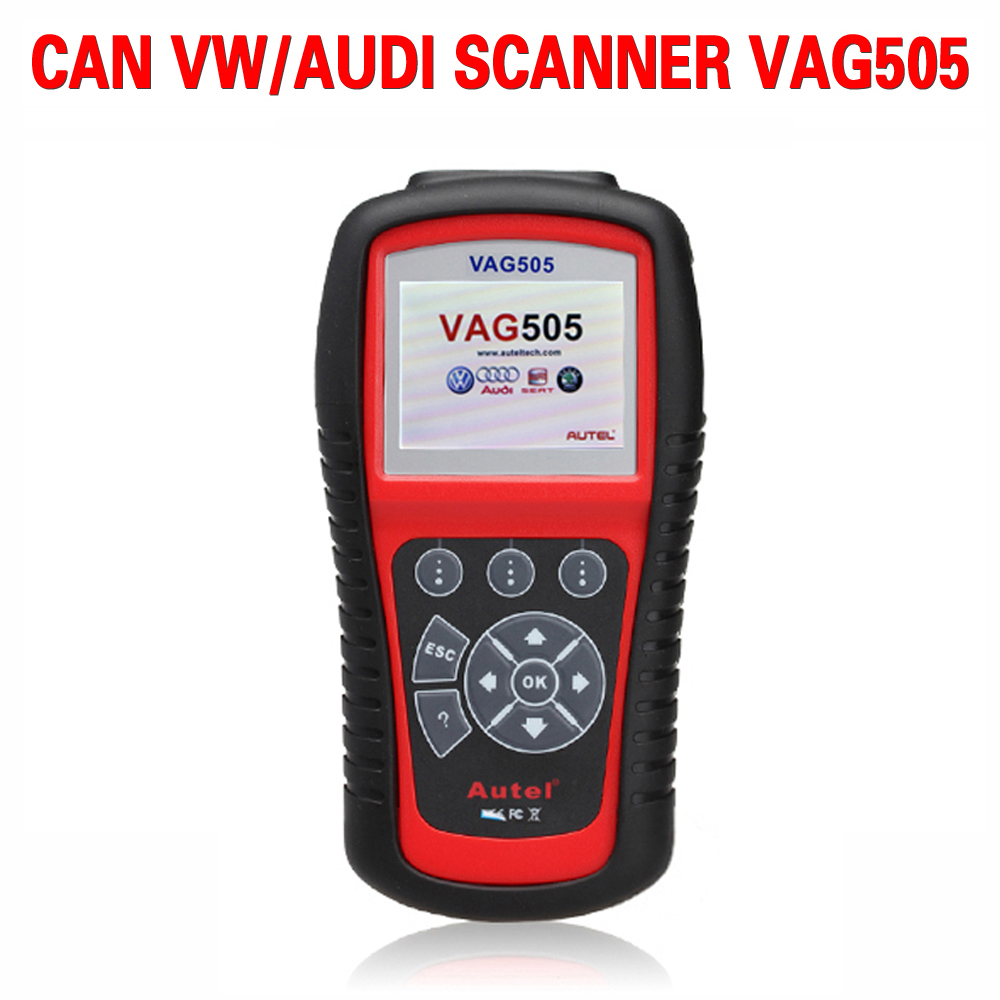

The MaxiService VAG505 scan tool is an OEM level diagnostic tool for most VW/ Au-di/ Seat/ Skoda vehicles sold worldwide since 1996. Using Volkswagen proprietary diagnostic protocol, VAG505 allows the user to access almost all the systems. Small, robust, affordable and easy to use, it is the"Electronic Wrench"you should keep in your glove box!

Features

1. Works with Volkswagen, Au-di, Seat and Skoda vehicles sold worldwide since 1996

2. Reads and erases Diagnostic Trouble Codes (DTCs) of almost all the systems

3. Turns off MILs of engine, airbag, ABS, A/T and most other systems

4. Resets Oil Service Light, service mileage and service intervals

5. Replaces and recalibrates brake pads safely

6. Supports ALL 10 test modes of the latest J1979 OBD II test specs, including Read Codes, Erase Codes, Live Data, Freeze Frame, I/M Readiness, O2 Mon. Test, On-Board Mon. Test, Component Test and Vehicle Information

7. Data graphing

8. Troubleshooter codes tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time

9. TF memory card for data backup and software update.

10. One year free online software updates

11. Prints data via PC

Specifications

Display: TFT color display (320 x 240 dpi)

Operating Temperature: 0 to 60掳C (32 to 140 掳F)

Storage Temperature: -20 to 70掳C (-4 to 158 掳F)

External Power: 12.0 to 18.0 V power provided via vehicle battery

Length\Width\Height: 199 mm (7.83")\104.5 mm (4.11")\37.5 mm (1.48")

Weight: 0.28kg(without wire), 0.484kg(with wire)

Accessories

1 x Micro SD card

1 x CD

1 x Protective Nylon Case

1 x USB Cable

1 x OBDII Cable

1 x User's Manual
