Product Description

XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles

Free Update Online for 2 Years.

XTOOL EZ500 Features:

*Easy registration when EZ500 is connected to WIFI
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*8.0 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes
Language supported: English only

XTOOL EZ500 Functions List:

Read DTCs:read the trouble codes that are stored in the ECU.
Clear DTCs:clear current and historical trouble codes memory in ECU.
Read Live Data:This will allow you to read the parameters of the system being interrogated.
Actuation/Activate Components Test:Activations allow you to operate supported components for troubleshooting purposes.
Adaptation
Basic Setting
Advanced ID
Security Access
Coding


XTOOL EZ500 Special Funciton List:

Battery Matching
Adjustment Injector
Airbag Deactivate/Activate
ABS Bleed
Maintenance Reset
Airbag Reset
Odometer
Throttle Adjustment
Clear Learning Value
Read PIN Code
Stop/Activate SBC
Oxygen Light Reset



XTOOL EZ500 Coveraged System

Engine
Transimission
Brake
Steering
Kessy
Seat
Display
Air condition
Central electrics
Alternative fule engine
etc...







XTOOL EZ500 Car List:

Extensive vehicle coverage for most US, Asian and European vehicle makes
American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn



Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV



Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…



Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

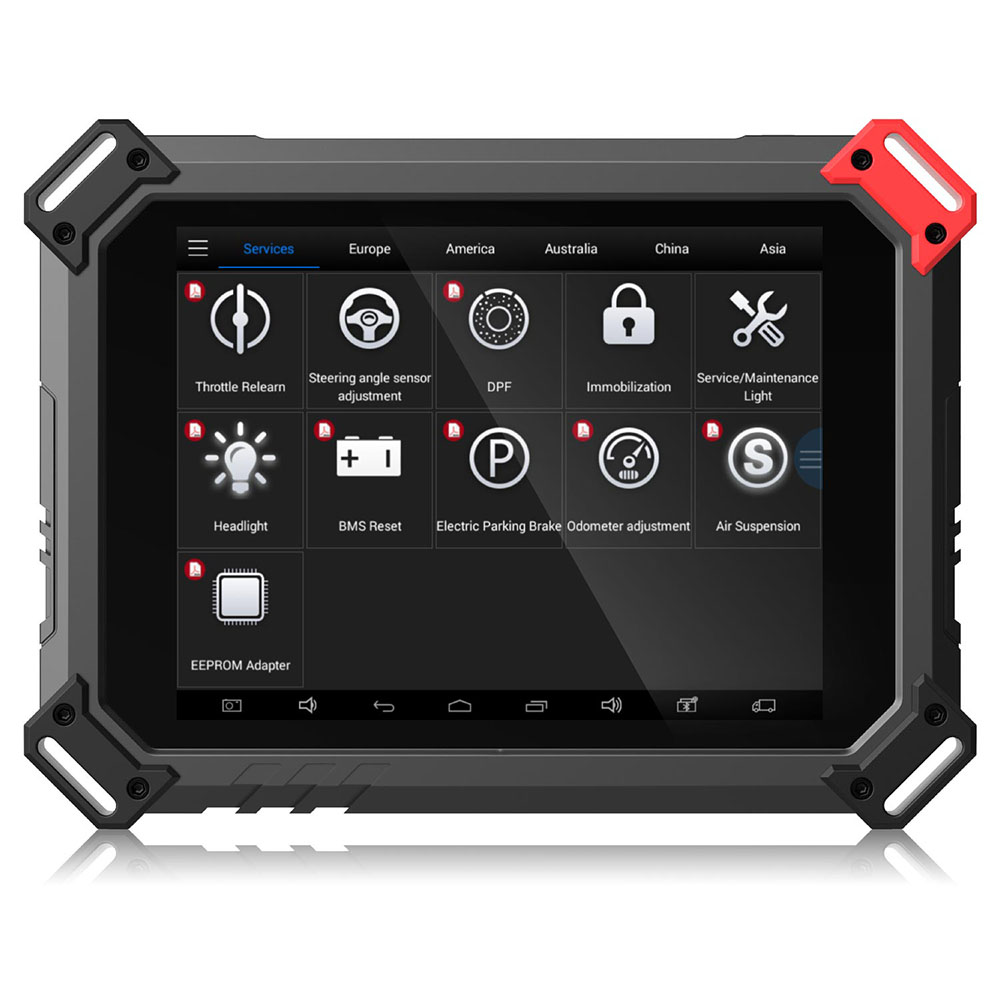

Xtool EZ500 Layout



①　DC Charging port: Battery charging
②　DB15 Interface: Supports wired connection with car by the cable
③　USB Type C Interface: Compatible with HDMI TV port; Transfer audio and video simultaneously
④　Power Button: Power on or power off





EZ500 Exploded Diagram



Easy registration when EZ500 is connected via Wifi, no need connected to PC.



Connect to the vehicle directly with cable



①　EZ500 Mainframe
②　Main Test Cable
③　OBD2 16pin Connector
④　Vehicle

How to Update XTOOL EZ500 Diagnostics:

XTOOL EZ500 updates directly via the Internet using WiFi or wired connection.To access the update application open the EZ500 application and click UPDATE,shown below



XTOOL EZ500 FAQs:

Question 1:Includes Eeprom Adapter?
Answer 1:No include the eeprom adapter

Question 2:Can this tool work with Japenese Toyota premio
Answer 2:Yes it work !

Question 3:it can programming ecm/pcm module
Answer 3:Yes it would

Question 4:is it possible to set the odometer of a f150 2003?
Answer 4:Sorry it can't,but can work with f150 2011 to now

Question 5:Will the Kc100 work with the ez500?
Answer 5:Sorry,it can’t.KC100 work with X100 PAD2

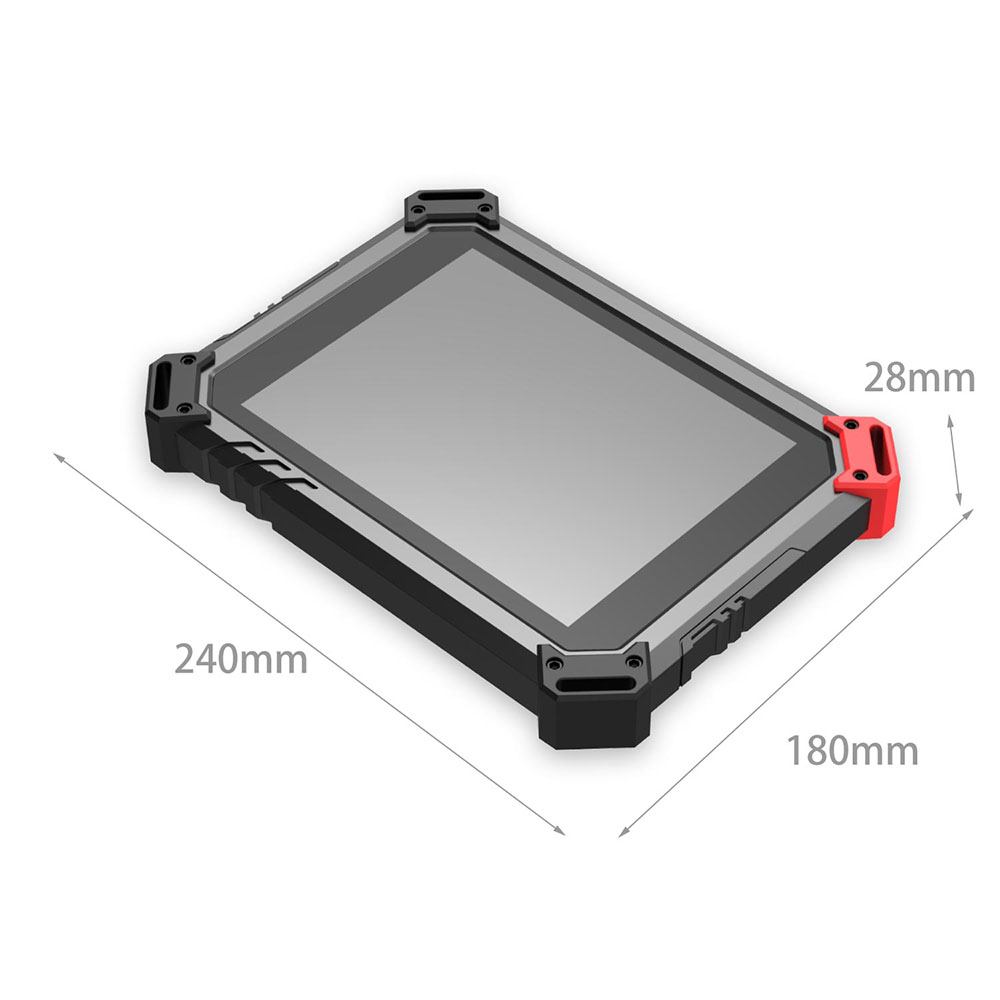

XTOOL EZ500 Specification:

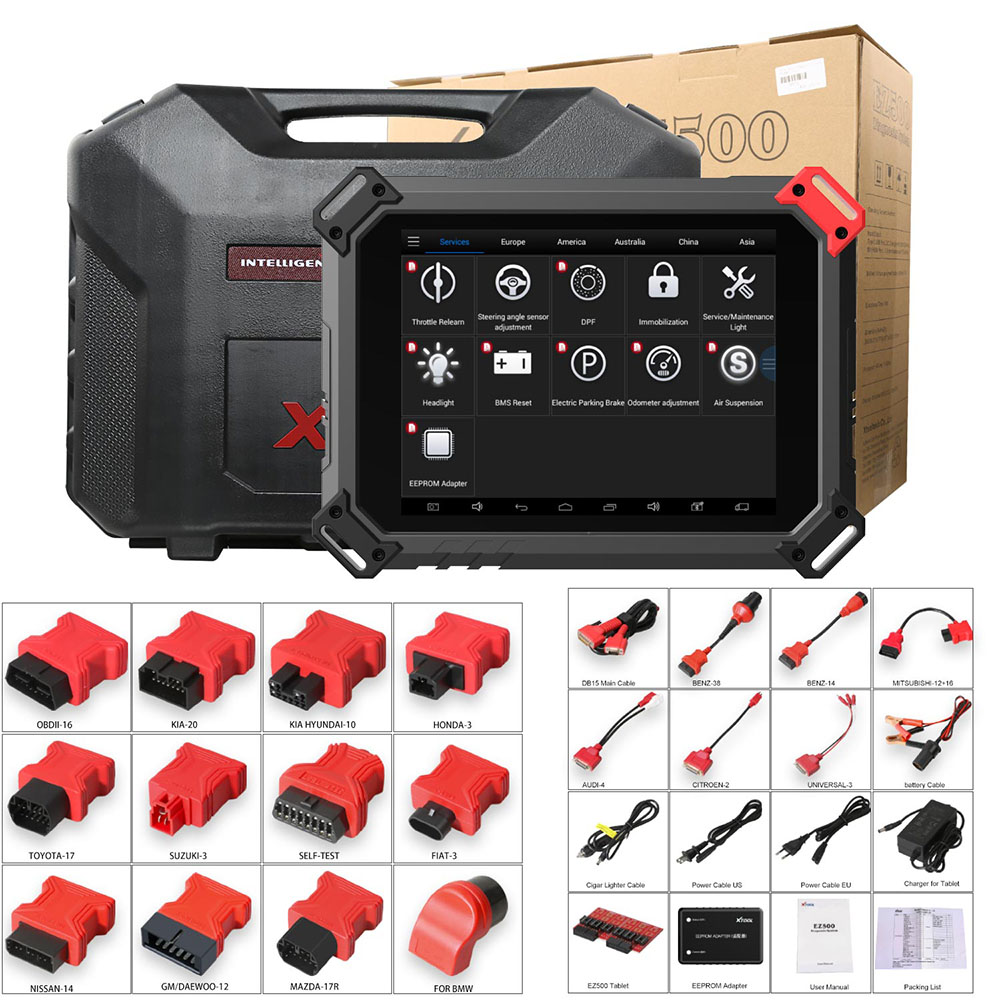

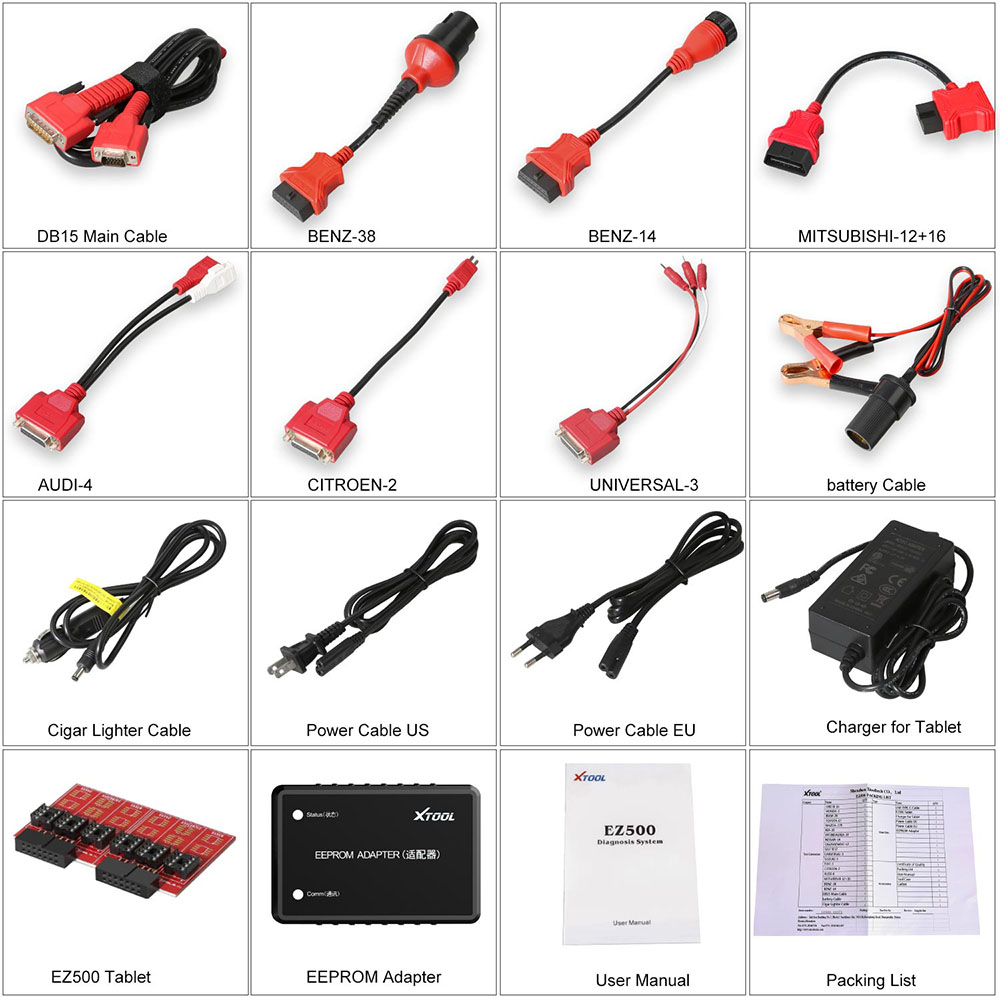

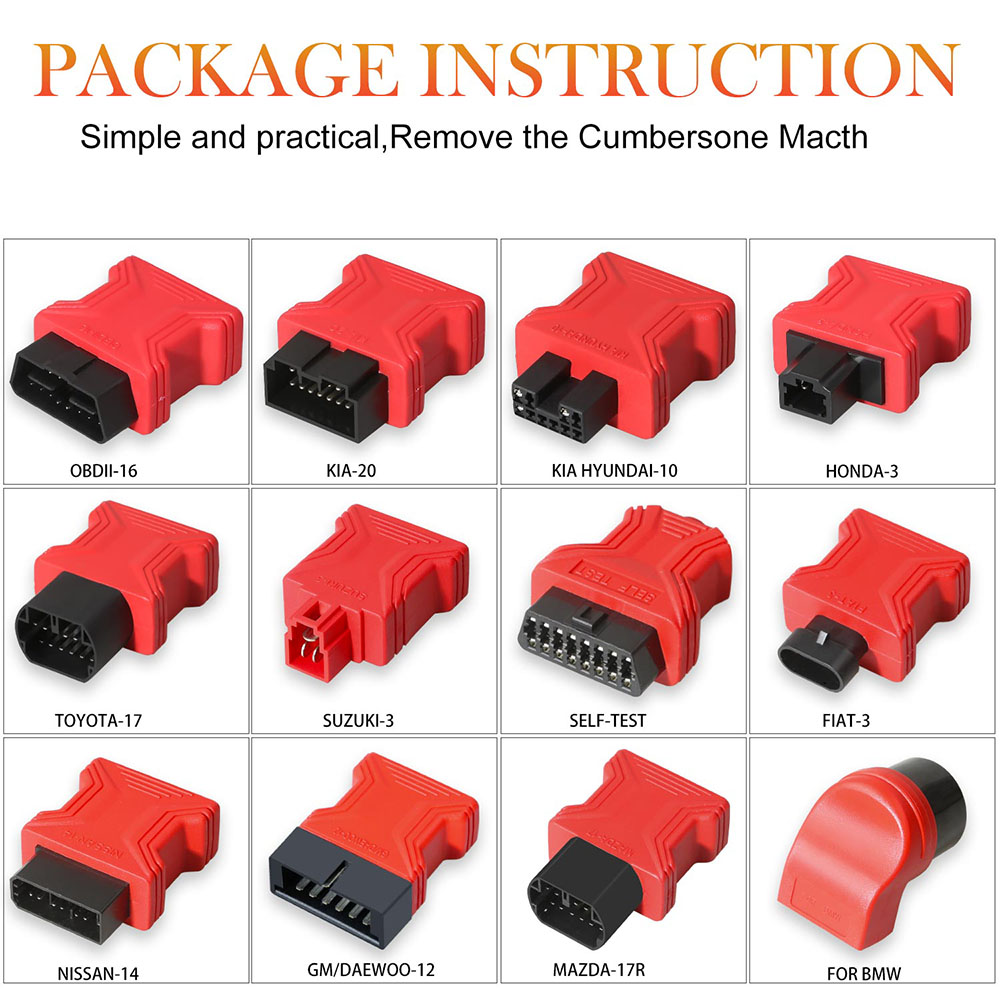

XTOOL EZ500 Package Including:

1pc x EZ500 Tablet
1pc x Charger for Tablet
1pc x OBD II-16
1pc x HONDA-3
1pc x BMW-20
1pc x TOYOTA-17
1pc x MAZDA-17R
1pc x KIA-20
1pc x NISSAN-14
1pc x GM/DAEWOO-12
1pc x SELFTEST
1pc x UNIVERSAL-3
1pc x SUZUKI-3
1pc x FIAT-3
1pc x CITROEN-2
1pc x AUDI-4
1pc x MITSUBISHI-12+16
1pc x BENZ-38
1pc x BENZ-14
1pc x Main Cable
1pc x battery Cable
1pc x Cigar Lighter Cable
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x Micro USB Cable
1pc x Case
1pc x Stand for EZ500
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton
