PP2000/Lexia-3 Interface works with both Citroen and Peugeot. It is compatible with most of Citroen and Peugeot cars from 1995.But not good for Peugeot 307 and Citroen C5.It support read identification, read fault codes, clear fault codes, auto-scan etc. Multiple language available.

PPS PP2000 V23 Lexia-3 V46 Citroen/Peugeot Diagnostic

PP2000/LEXIA-3 Interface works for both Citroen and Peugeot!

Compatible Vehicles
Description:

1.It is compatible with Citroen cars including: C1,C2,C3,C4,C6,C8,C-CROSSER,NEMO,BERLINGO,JUMPY,JUMPER,AX,SAXO,BX and so on. But please pay attention, according to our customer's experience, this item can not works good at C5 new models.

2.It is compatible with most Peugeot cars from 1995,but it can not work good with Peugeot 307 after 2004 year.If you have the two types of cars, please pay attention, please check with us first before purchase.
3.Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

Function:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read fault codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").
Program supports report printing or copy to clipboard.

3. Clear fault codes
this function clears all stored fault codes and other diagnostic information.

4. Auto-scan (complete car scan/test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values
Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

Specification:

1.Hardware and software requirements
Software requires at least Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 98 SR2/2000/XP with the latest service pack installed.
If customer requires, we can prepare ready to work PC.

2.Language
English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech

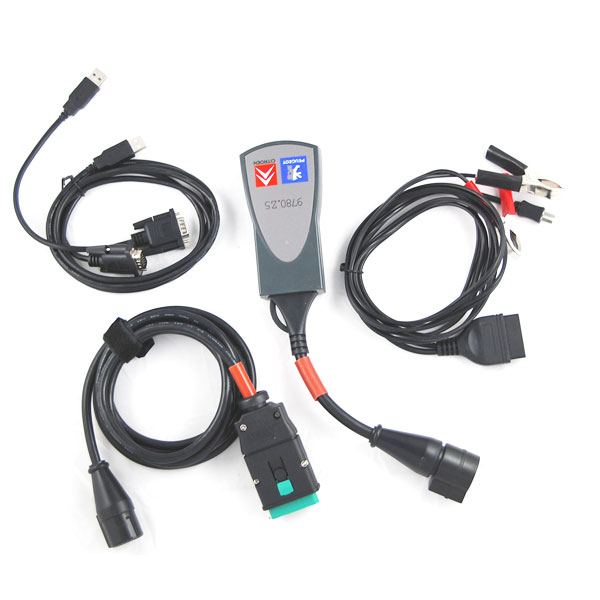

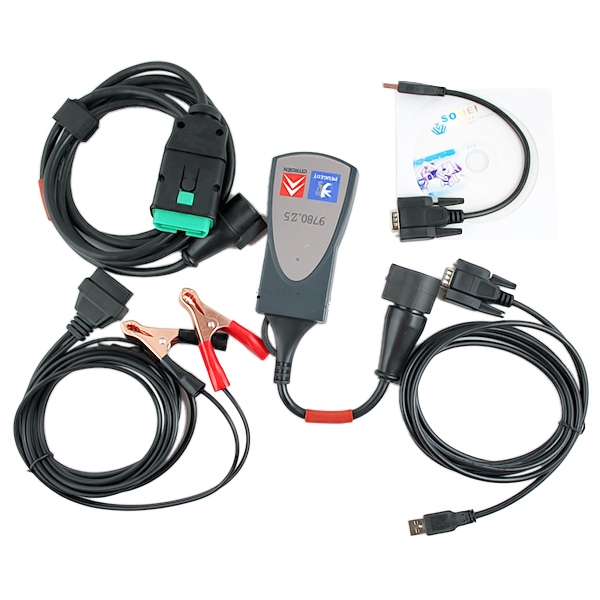

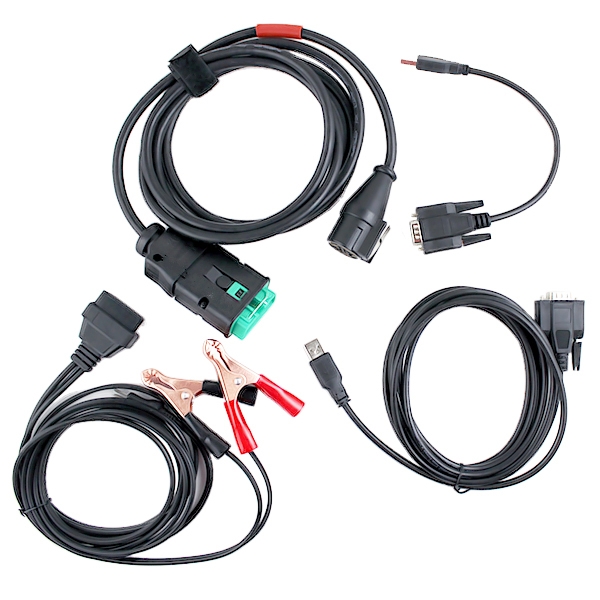

Package list:
1pc x Main unit with extension OBD2 cable
1pc x Long 9pin to USB cable
1pc x Short 9pin to USB cable
1pc x OBD2 cable
1pc x 16pin to Clip Cable
1pc x Instruction for Installation and Activation DVD for PP2000
