Professional Diagnostic Tools
/upload/20160726163959PicURL.jpg
XTOOL EZ400 Diagnosis System with WIFI Support Android System and Online Update Same As Xtool PS90 Warranty for 2 Years
·Product Category:Professional Diagnostic Tools
·Item No:CA110108
·Product Model:54.5cm*40cm*16.5cm
·Product Weight:7.0kg
·MOQ:1PCS
·Retail Price:US$959
·In Stock:10
Qty:
Details Description
XTOOL EZ400 Diagnosis System with WIFI Support Android System and Online Update Same As Xtool PS90

Top 6 Reasons to Choose EZ400:

1. Extensive vehicle coverage for most US, Asian and European vehicle makes
2. Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis……
3. Support Special function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..
4. Support WIFI connection, PAD support Android System
5. Support online update.
6. Same Function as Xtool PS90,but can not read EEPROM.

Layout of EZ400

Layout of EZ400 Display 1

1. SD Card Port: up to 32GB extension SD card
2. HDMI Port: Compatible with HDMI
3. Micro USB: Battery charge or data synchronization with PC.
4. Audi Port: For headphone
5. Power Button: Power on or off

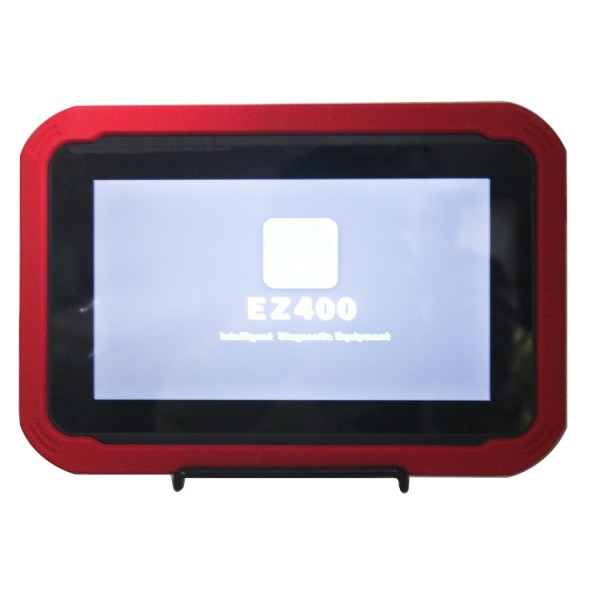

Front View of EZ400 Tablet:

Front View of EZ400 Tablet Display

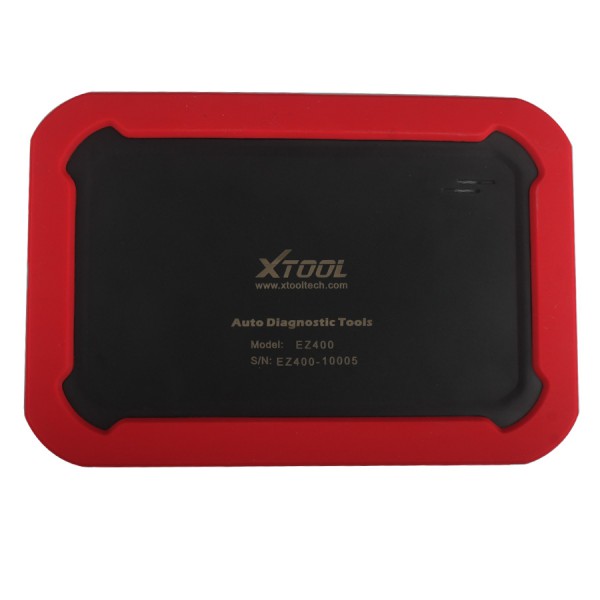

Back View of EZ400 Tablet:

Back View of EZ400 Tablet Display

Side View of EZ400 Tablet:

Side View of EZ400 Tablet Display

EZ400 with Stand

EZ400 with Stand Display

EZ400 Exploded Diagram

EZ400 Exploded Diagram Display

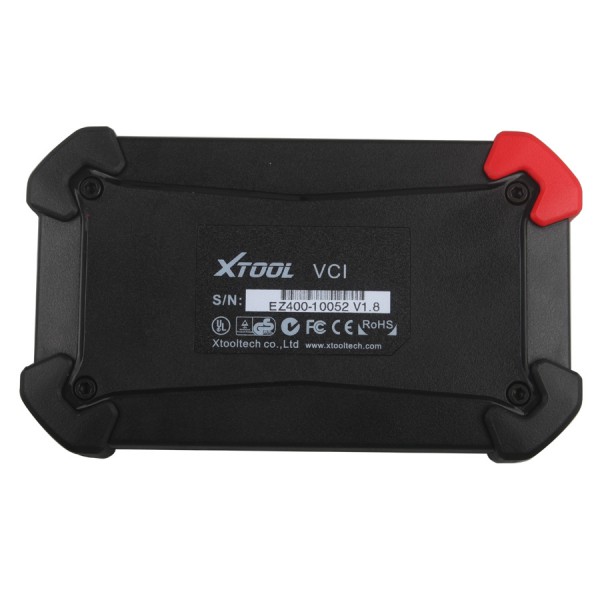

Introduction of EZ400 VCI Box:

Introduction of EZ400 VCI Box Dispaly

1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.
4. USB Indicator: When EZ400 tablet and VCI box are connected via USB cable, it turns green.

USB Display


EZ400 Features:

*Easy registration with EZ400 connected to WIFI
*Wireless diagnosis via Bluetooth
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*7 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes

Easy registration with EZ400 connected to WIFI. Don’t bother to use PC for registration.

Registration Display

Wireless diagnosis via ultrafast Bluetooth technology

Wireless Diagnosis Display 1

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

Update Display 1

Update Display 2

Remote access, which is perfect for training, demonstration and even remote diagnosis.

Remote Access Display

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.

Steps Display 2

Extensive Vehicle Coverage for Most US, Asian and European Vehicle Makes

American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn

American Coverage Display

Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV

Europe Coverage Display 1

Europe Coverage Display 2

Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…


Asia Coverage Display 1

Europe Coverage Display 2

Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

Chinese Coverage Display

Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis……

Full System Diagnosis Display

Basic Function: read fault codes, clear fault codes, live data, actuation

Basic Function Display

Accurate live data in both Wave and Dashboard form

Basic Function Display 2

Special Function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..

Special Function Display



Operating System: Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU Quad Core, 1.3 GHz
Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USB Port, TF Card Port
Battery: 2400mAh, 3.7V
Power Voltage: 5V
Power Consumption: 8W
Operating Temperature: -20 to 50℃(-4 to 126℉).
midity: <90%
Dimension: (L*W*H): 208*140*15.5mm

Difference Between XTOOL Products:

  X100PAD EZ500 EZ400 EZ300
Full System Diagnosis   yes yes Engine, ABS, SRS, AT
Key Programming yes yes
Oil Reset/Engine Oil Light Reset yes yes yes yes
EPB Electrical Parking Brake Adaptation yes yes yes
TPS Throttle Body Adaptation yes yes yes
Odometer Adjustment yes yes
EPS Electric Power Steering Calibration yes yes
Gear Learning yes yes
ABS Exhaust yes yes
ECU Reset yes yes
Tire Pressure Warning Light Reset  yes yes
Battery Reset yes yes

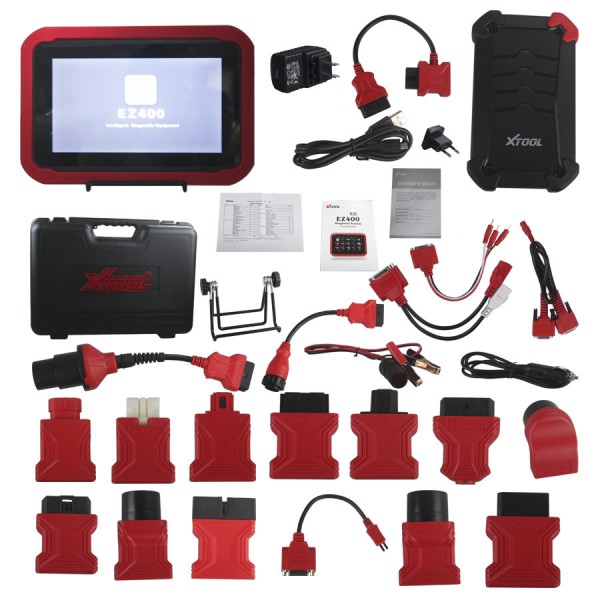

Package Including:

OBD II-16
HONDA-3
BMW-20
TOYOTA-17
MAZDA-17R
KIA-20
HYUNDAI/KIA-10
NISSAN-14
GM/DAEWOO-12
SELFTEST
UNIVERSAL-3
SUZUKI-3
FIAT-3
CITROEN-2
AUDI-4
MITSUBISHI-12+16
BENZ-38
BENZ-14
Main Cable
battery Cable
Cigar Lighter Cable
EZ400 Tablet
VCI Box
Charger for Tablet
US Power Adapter
EU Power Adapter
Micro USB Cable
Case
Stand for EZ400
Certificate of Quality
Packing List
User Manual
Carton
