Professional Diagnostic Tools
Professional Diagnostic Tools
| JLR V142 SDD Mangoose 2013D VIDA for Volvo V9.30.002 TIS Techstream for Toyota 3 In 1 Scanner | ||
| ·Product Category:Professional Diagnostic Tools | ||
| ·Item No:CA110083 | ||
| ·Product Model:22cm*16cm*4cm | ||
| ·Product Weight:0.2kg | ||
| ·MOQ:1PCS | ||
| ·Retail Price:US＄49 | ||
| ·In Stock:100 | ||
| Qty: |
|
|
Details Description
JLR Mangoose 3 IN 1 support Jaguar and Land Rover Support till 2014 year vehicle, support Toyota vehicle till 2014 and Volvo vehicle till 2013 year. JLR Mangoose 3 IN 1 is a tool used together with VIDA all-in-one to communicate with vehicles. Communication makes diagnosis and troubleshooting possible, as well as downloading software.
JLR V142 SDD Mangoose 2013D VIDA for Volvo V9.30.002 TIS Techstream for Toyota 3 In 1 Scanner
This Item is the Combination of JLR Mangoose, Volvo VIDA for Volvo and Tis Techstream for Toyota.
JLR version after V137 do not support offline programming, you can do the online programming
Comparation between JLR Mangoose Serial:
| Color | Blue | Blue | Blue | Orange |
| Support Vehicles | Jaguar and Land Rover 2005-2014 | Land Rover and Jaguar from year 2005 to 2014 | Land Rover and Jaguar from year 2005 to 2014 | Jaguar from 2005-2014 Land Rover from 2005-2014 Toyota from 1996-2014 Volvo from 1996-2013 |
| Language | English, German, Russian, French, Dutch, Portuguese, Japanese, Spanish, Italian and Simplified Chinese | English(United States), French, German, Italian, Japanese, Portuguese, Russian, Spanish, Dutch and Simplified Chinese | English(United States), French, German, Italian, Japanese, Portuguese, Russian, Spanish, Dutch and Simplified Chinese | English(United States),French(Standard),German,Italian, Japanese, Korean, Portuguese,Russian, Spanish,Dutch,Chinese(Simplified) |
| Software Version | JLR SDD V142 | JLR SDD V142 | JLR SDD V142 | JLR: V142 Volvo: 2013D Toyota: V9.30.002 |
| Update | Via CD | Via CD | Via CD | Via CD |
| PC OS Requirement | Win7 and Windows XP | Win XP/Win 7/Win 8( Not all WIN 7/WIN 8 system can install JLR SDD V142) | Win 7 | Windows XP |
| Notes: 1.Disconnect with internet when you use it 2. JLR SDD Software version after V137 do not support offline coding, but can support online coding |
||||
Support Vehicle List:
Jaguar from 2005-2014
Land Rover from 2005-2014
Toyota from 1996-2014
Volvo from 1996-2013
Software Version:
JLR: V142
Volvo: 2013D
Toyota: V9.30.002
Features and Benefits:
1. Data Lists
2. Active Tests
3. Monitor
4. Utility tests
5. Reprogramming
6. Diagnostics Trouble Codes
7.DICE - Diagnostic Communication Equipment, is a tool that is used together with VIDA all-in-one to communicate with the vehicle.Communication makes diagnosing and troubleshooting the vehicle possible, as well as downloading software.
8.DICE has an integrated CARB cable, which is connected to the vehicle's diagnostic socket. When connecting to the vehicle, DICE is powered as long as the battery is charged.
9.DICE has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.
10.DICE is equipped with four status LEDs that indicate the status of the software, the USB and Bluetooth communication and the interface to the car.
11. At one end of the unit, there is a DC input where a battery cable or adaptor(12V) can be connected. The adaptor is used when upgrading and troubleshooting the DICE.
12. In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.
13.High performance with ARM cpu inside.
14.High reliability of products using SMD chip, and certified by CE and FCC.
Specifications:
1. Administration - General information, design and function
2. Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety)
3. Service and maintenance
4. Engine with mounting and equipment
5. Electrical system
6. Power transmission
7. Brakes
8. Suspension and steering
9. Springs, shock absorbers and wheels
10. Body and interior - among other things, diagnostics, design and function, repair and spare part information
11. Other - special vehicles, e.g., ambulances, police cars. Components that deviate from standard.
12. Dimensions: 3" x 1.75"
13. J2534 and J2534-1 compliant device driver
14. Commercial Range (0 to +70 C)
15. Operating Voltage: Bus-powered by USB
16. Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device driver
Package list:

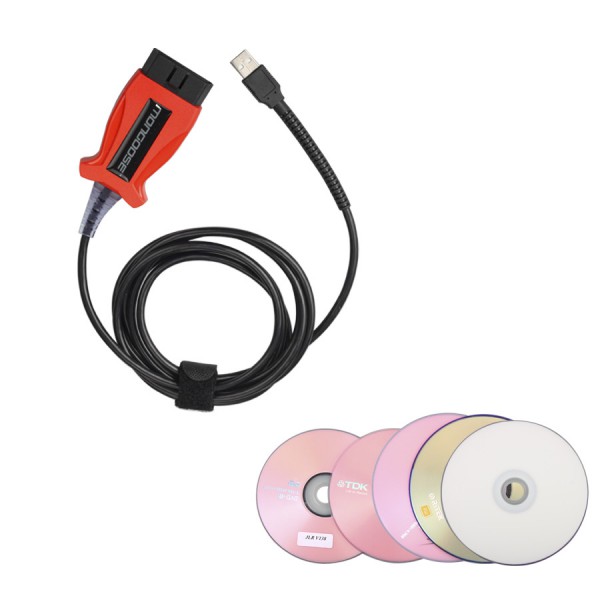

1pc x VOLVO JLR Mangoose MVCI 3 IN 1 Cable
3pc x CD Driver
