Professional Diagnostic Tools
Professional Diagnostic Tools
| DA-Dongle J2534 SDD V139 VCI Device For Jaguar & Land Rover | ||
| ·Product Category:Professional Diagnostic Tools | ||
| ·Item No:CA110074 | ||
| ·Product Model:19cm*16.5cm*4cm | ||
| ·Product Weight:0.3kg | ||
| ·MOQ:1PCS | ||
| ·Retail Price:US＄185 | ||
| ·In Stock:100 | ||
| Qty: |
|
|
Details Description

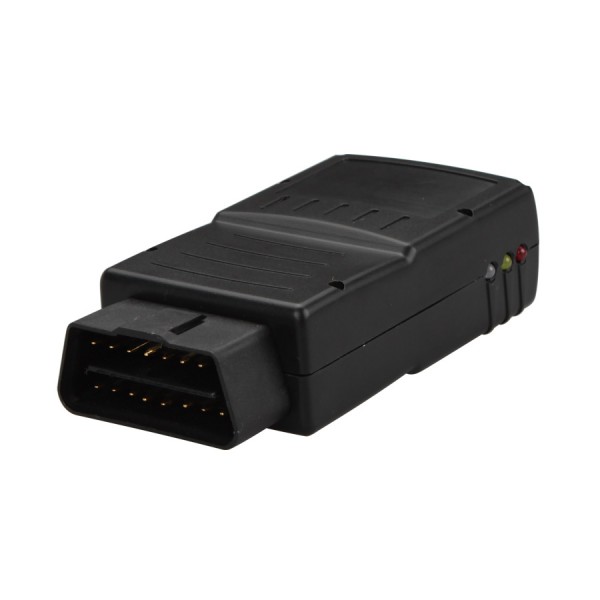

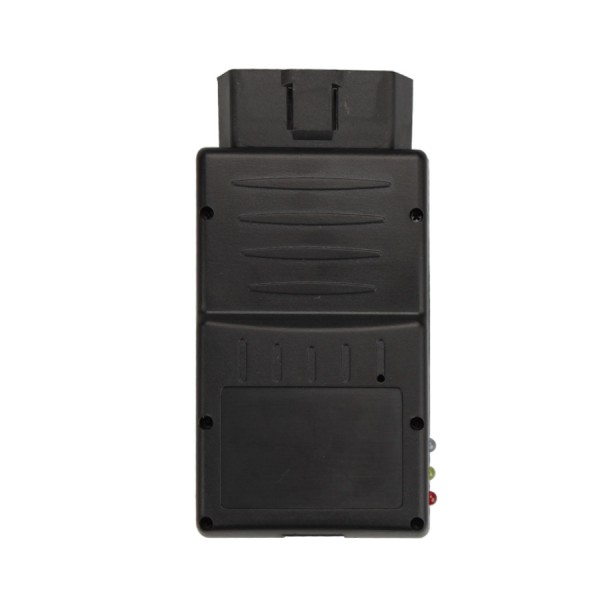

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover is designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR SDD diagnostic applications.
DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles
JLR SDD Version: V139
Top 5 Reasons To Get DA-Dongle J2534:
1. The DA-Dongle J2534 device is simple and easy to use
2. JLR Approved device, replacement for JLR SDD VCM
3. Covers CAN, & ISO9141 vehicle networks

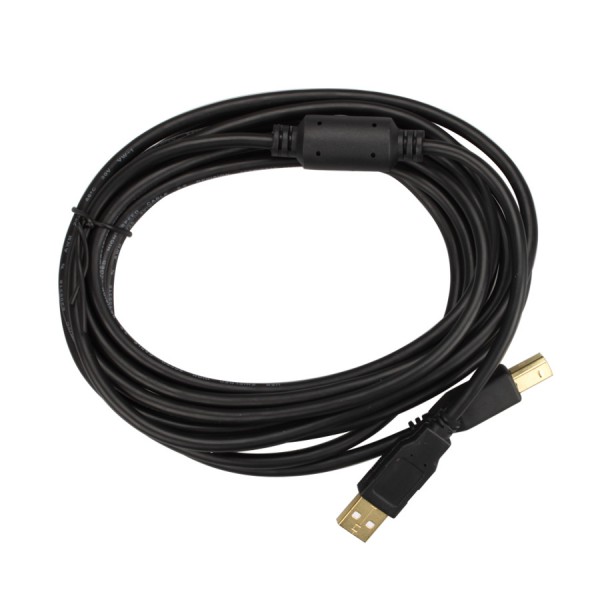

4. 12ft USB cable as standard included
5. Easy to update for J2534 new functionality
Jaguar & Land Rover Vehicle Coverage:
Jaguar & Land Rover Vehicle Coverage:
| JLR Vehicles | Supported? |
| Defender | Yes |
| Discovery /LR3/LR4 | Yes |
| Range Rover Sport & New Range Rover Sport | Yes |
| Range Rover | Yes* |
| New Range Rover | Yes |
| Freelander /LR2 | Yes |
| Evoque | Yes |
| XJ – X300/X308 | No |
| XJ - X350 | No |
| XJ - X351 | Yes |
| XJS | No |
| XK – X100 | No |
| XK - X150 | Yes |
| XF | Yes |
| S-Type | No |
| X-Type | No |
| F-Type | Yes |
| (Yes) – Vehicle line fully supported: (Yes) - Vehicle line fully supported apart from viewing Data logger signals from both ECM and TCM modules simultaneously on 2006MY variants : (No) - Vehicle Line Not supported – supported by DAVINA J2534 or DA-ST512 vehicle interface |
|
DA-Dongle J2534 Functions:
1. It will allow normal operation with the JLR SDD diagnostic tool,once the J2534 DLL files are loaded.
2. The DA-Dongle J2534 connects directly to the vehicle OBDII (diagnostic) connector and then to a laptop via a USB cable for use with SDD
3. Only SCP communications are not possible with this device
How to operate in J2534 mode?
1. Download the latest J2534 DLL software files from the Diagnostic Associates web site www.diagnostic-associates.com/download.htm and install these on the SDD laptop.
2. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).

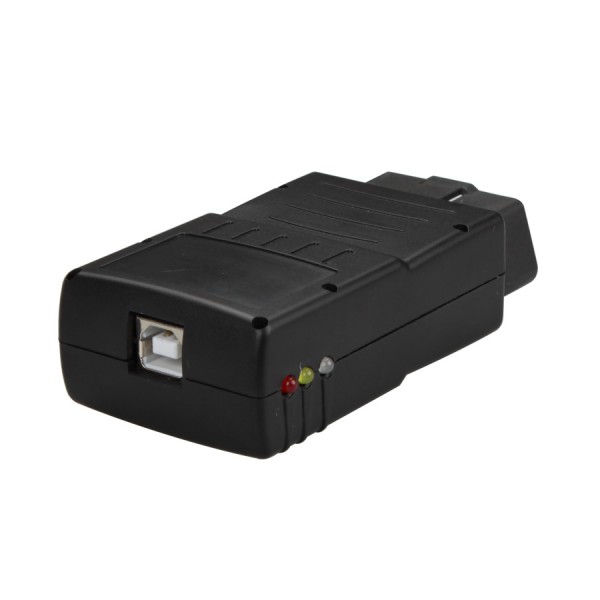

3. Connect the 12ft USB cable to the J2534 device and the other end to the SDD laptop.
4. The red vehicle power (PWR) LED will illuminate to show that the device is powered.
5. During communication with the vehicle the status (STS) LED will flash green.
6. The device interacts with the SDD diagnostic tool in the same way as the existing VCM.

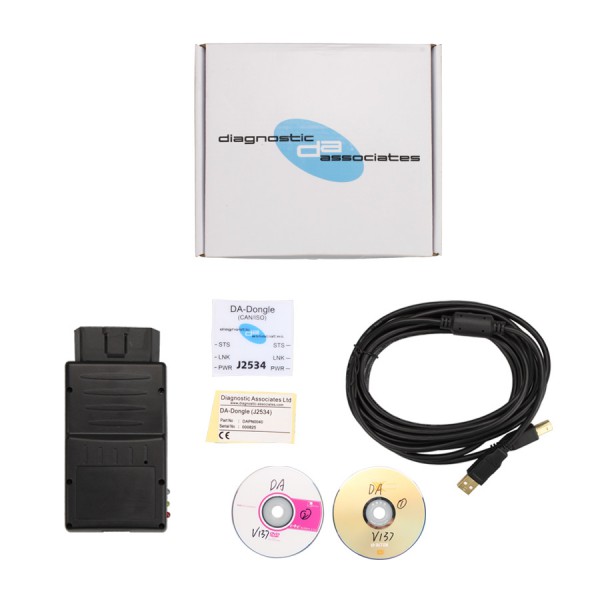

Package List:
1pc x DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles
