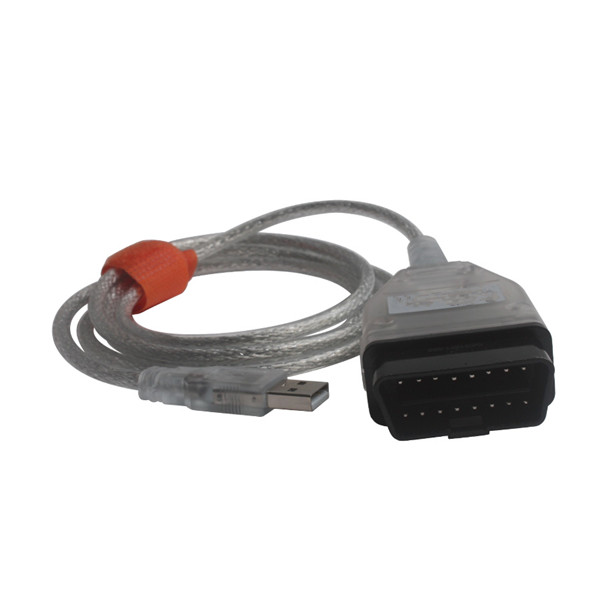

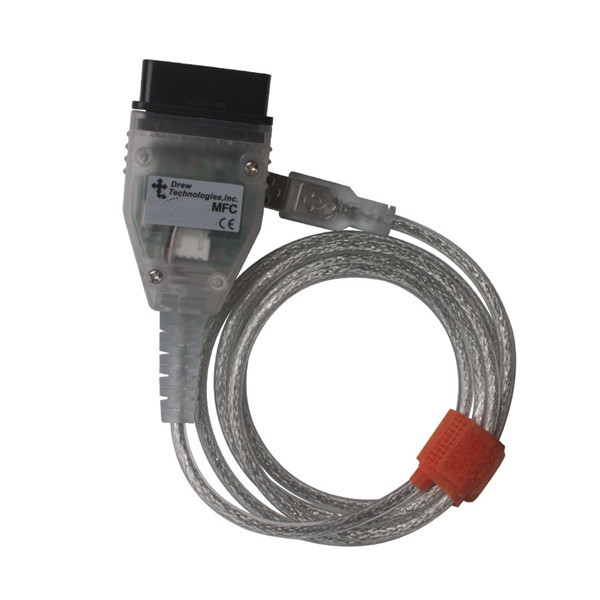

Mangoose for Honda

Computer: XP only (No anti-virus software)
Update: CD
Mangoose for Honda Software Free Download

Mangoose for Honda Features



1) Low cost, high performance pass-thru diagnostic tool for use with PC

2) Simple packaging with electronics contained inside the cable

3) J2534 and J2534-1 compliant device driver

4) Commercial Range (0 to +70° C)

5) Dimensions: 3" x 1.75"

6) Cable length: 6 feet

7) Operating Voltage: Bus-powered by USB

8) Mangoose VPW supports GM TIS, SPS, TIS2WEB, and DPS flash reprogramming software



Supported List


Bus Protocols supported by the Mangoose MFC for Honda

CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)

KWP2000 (ISO9141 / ISO14230)

Short to Ground pins 1, 9 and 15

VPP +5 Pin 12



Software Options


The Mangoose is a USB pass-thru device that utilizes the SAE J2534-1 API. What this means is that the Mangoose uses a standard communications interface to the vehicle, allowing it to work with 3rd party diagnostic applications. Different diagnostics and data logging applications supported are currently supported by the Mangoose, with more being added all of the time.



PCMScan Diagnostics and Data Logging Software


This full version of PCMScan allows viewing, charting, data logging, and playback of diagnostic data in real time. Realistic looking gauges can be moved, resized, and laid out to resemble your own dashboard. Display English or Metric units. Read stored Diagnostic Trouble Codes (DTCs), clear the check engine light, and test emissions related systems.



PCMScan Running on Mangoose ISO and Mangoose VPW


PCMScan running on Mangoose ISO(M-ISOCAN) or Mangoose VPW(M-VPWCAN) supports all ISO141 import vehicles and all CAN vehicles including all GM vehicles and many Ford, BMW, Honda, Toyota, Chrysler, Mitsubishi, Nissan, Volvo, Volkswagen, and many other automaker brands. By 2008 all vehicles on the road will be CAN based and supported by the Mangoose ISO/CAN adapter.


API


Drew Technologies also provides an application programmer interface (DLL) for OEMs, integrators, or end-users to develop their own PassThru (SAE J2534) applications. Create your own applications in LabVIEW tm, C or Visual Basic.

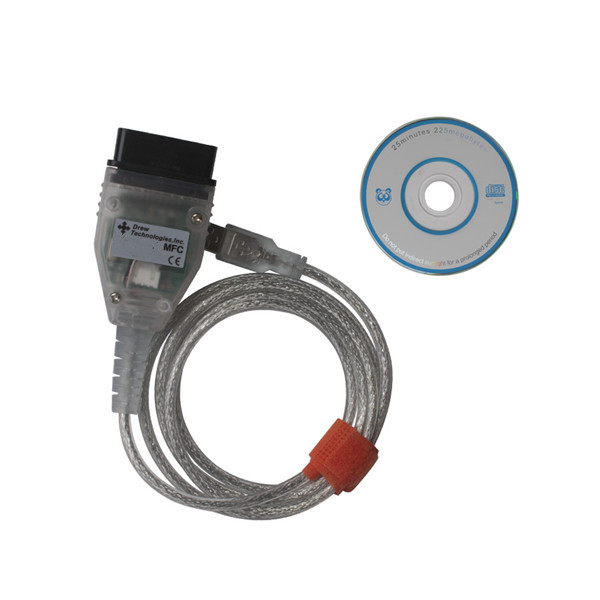

Package List:


1) Mangoose vehicle interface

2) Installation CD with device driver (J2534 compatible)

FAQ:

Q:What’s difference between Mangoose honda and SP15-C+SO288?
A:Function is almost same,but SP15-C+SO288 is more stable and better.
