The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers,mainly do AUDI VW Seat.It is bluetooth version.
Multi-language available: English/Germany/Russia/Spanish/Czech/France/Dutch/Greece

VAS 5054A VW Audi Bentley and Lamborghini Multi-language diagnostic tool

New arrival!!!!
Multi-language available!!!!
Support Bentley and Lamborghini!!!

Description:

Bluetooth version

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.

1.VAS 5054A Software Version:V15/V16/V17/V18

2.VAS 5054A Language:English/Germany/Russia/Spanish/Czech/France/Dutch/Greece

Specification:

The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.

Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.

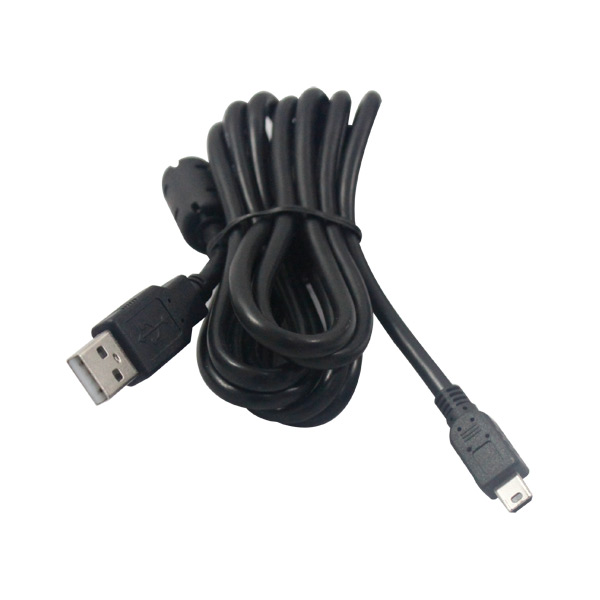

Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

The following vehicle bus systems are supported:

K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

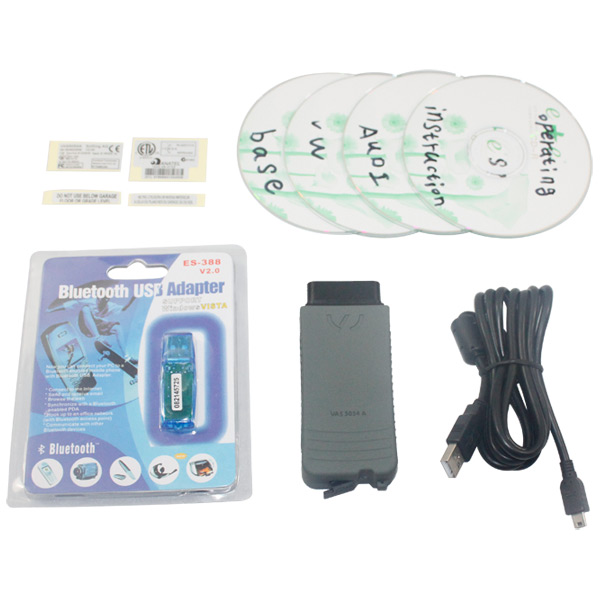

Package list:

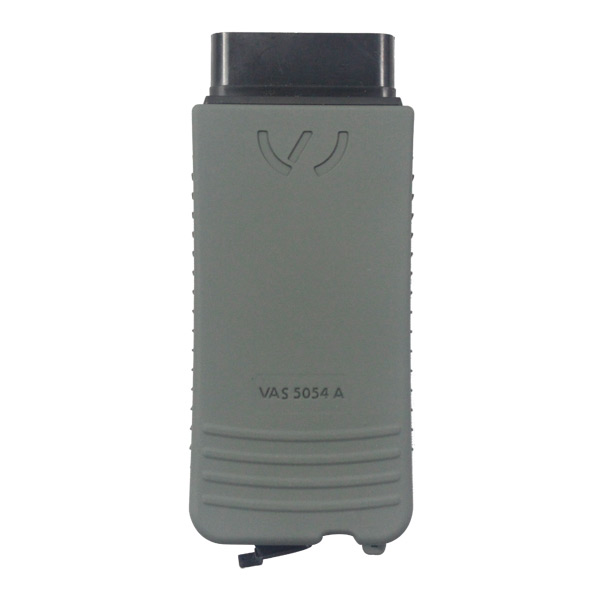

1× VAS 5054A main unit
1×CD(Basis-VASPS 18.00.01-English)
1×CD(Audi-18-84-English)
1×CD(VW-Marke-18-82-GB-English)
1x CD(Operation CD)
1 x CD(Seat-18 English)



English V18: Basic CD,VW CD, AUDI CD, Skoda CD, Seat CD

Germany V18: Basic CD, VW CD, AUDI CD

Russia V18: Basic CD, VW CD, AUDI CD, Skoda CD

Spanish V18: Basic CD, VW CD, AUDI CD, Skoda CD, Seat CD

Czech V17: Basic CD, VW CD, AUDI CD

France V17: Basic CD, VW CD, AUDI CD

Dutch V17: Basic CD, VW CD, AUDI CD

Greece V17: Basic CD, AUDI CD

English V17: Bentley

English V17: Lamborghini

Tips:Please tell us what language of software and what version of software you want when place an order on our website.Please pay attention,Germany and Spanish language only have one version.

If customer did not specify which language you want, we will send out newest english version CD. If you have requirement on CD,please leave message under your order on in paypal message.
