1. Full driving with 48 pin(Vpp/Vcc/GND/TTL), good for furture upgrading.
2. Support 2.5V to 6.5V device.
3. Selectable to use USB or extral 5V power supplier to supply power.
4. Transmission speed is 12MHz/s.
5. Suitable to work with Desktop and Laptop.
6. With current protection fuction, effectively protects the programmer and devices.
7. Automatic Pin status detection.
8. 48 pins self-lock sockets.
9. Support operation system: WINDOWS7/vista/2000/2003/XP;
10. Plastic cabinet, small size and light weight.
11. Auto detect company and type of the IC.
12.Software support: TopWin ver6.0 or newer.

TOP3100 Specifications

1. Software: Topwin6 (for Windows7/Vista/2003/2000//xp)
2. Actual tested Speed(PIII/800M, Windows98se,USB1.1):
 28F320 write and check 104 seconds,
 29LF320 write and check 112 seconds,
 p89c58 write and check 5 seconds,
3. Size: 155mm*110mm*26mm
4. Weight for the programmer only : 275g
5. Power: < 2.5W (5V/500mA)
6. 48 Pin self-lock socket (Changeable)

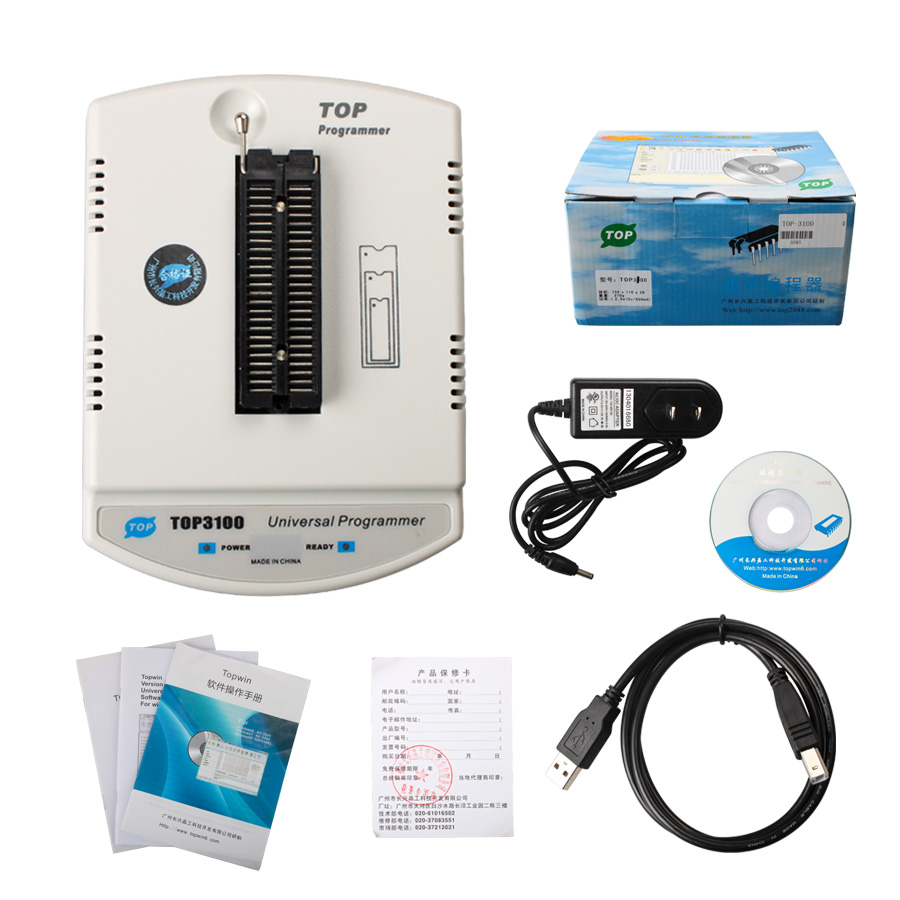

This Auction Includes:

1. New Top3100 USB Universal programmer;
2. Software: TopWin6 (for Windows7/Vista/xp);

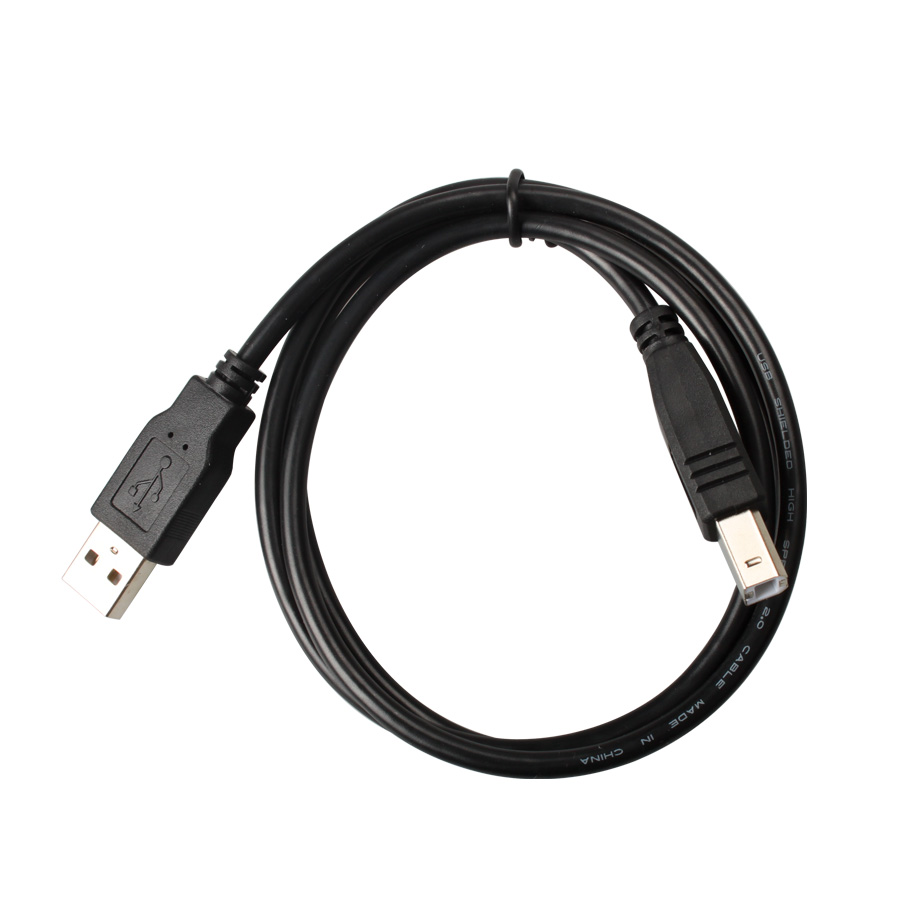

3. USB cable.
