ECU Chip Tuning Tools
ECU Chip Tuning Tools
| Original Wellon SmartPRO X8-PLUS Universal Programmer Update Free Life-time | ||
| ·Product Category:ECU Chip Tuning Tools | ||
| ·Item No:CH110071 | ||
| ·Product Model:40cm*27cm*10cm | ||
| ·Product Weight:1.3kg | ||
| ·MOQ:1PCS | ||
| ·Retail Price:US＄350 | ||
| ·In Stock:100 | ||
| Qty: |
|
|
Details Description
1.SmartPRO X8-PLUS Universal Programmer present high-performance on NAND flash and COPLD/FPGA programming,
2.It is the most cost effective solution in device programming challenges.

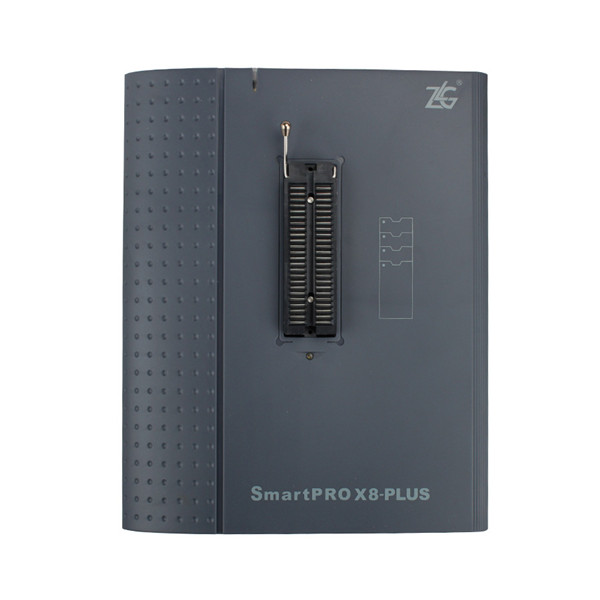

SmartPRO X8-PLUS Universal Programmer
Life-time Update for Free
SmartPRO X8-PLUS Functions and features:
SmartPRO X8-PLUS supports M0 and M3 chips built by mainstream manufacturers, such as NXP, STM, Freescale, NUVOTON, FUJITSU and ATMEL. Besides, most M0, M3 chips are burned through parallel interfaces in X8 programmer, taking about less than half the time than that through serial connectors.
SmartPRO X8-PLUS supports storages with common protocol standards. External memory chips are usually needed when using M0 and M3 chips. Most of these external memory chips are using SPI, IIC, NOR protocols, etc. These low capacity storages have full support in X8 programmer.
SmartPRO X8-PLUS supports storages with common protocol standards. External memory chips are usually needed when using M0 and M3 chips. Most of these external memory chips are using SPI, IIC, NOR protocols, etc. These low capacity storages have full support in X8 programmer.
SmartPRO X8-PLUS Parameter Specifications:
| Model | SmartPRO X8-PLUS |
| Device Support | EPROM, Paged EPROM, Parallel and serial EEPROM, FPGA Serial PROM, NOR FLASH, BPROM, NVRAM, CPLD, MCU, Firmware HUB, ARM, Standard Logic Devices (TTL\CMOS), etc. 1.8 - 9V working voltage. |
| Packaging Support | DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, μBGA, CSP, SCSP, etc. |
| Communication Interface | USB 2.0 (High Speed) |
| Offline Mode Storage | No built-in electrical hard disk, a Compact FLASH card |
| Optional configuration | Adapter |
| Electrical Specification | Input electricity: AC 100V-240V/47-63Hz Output electricity: 12V/2A |
| Product Specification | Main unit specification: 280mm×170mm×57mm (L×W×H) Weight: 0.5Kg(1.08 Pounds) |
SmartPRO X8-PLUS Software is user friendly, and free life-time software updates are available!

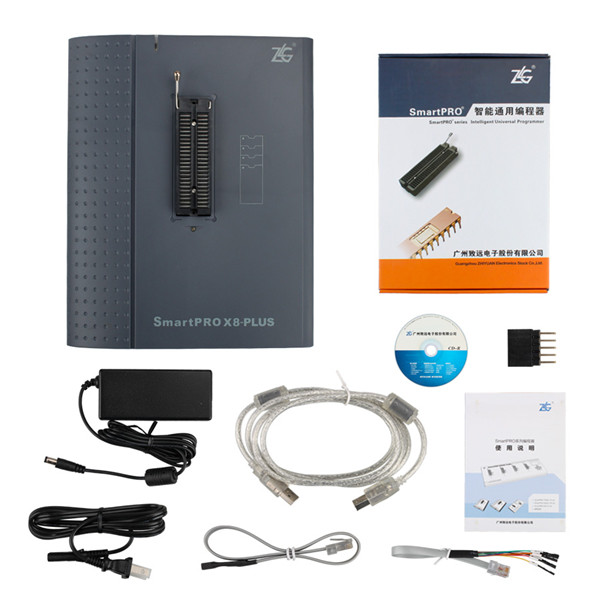

Package including:
1pc x SmartPRO X8-PLUS Programmer

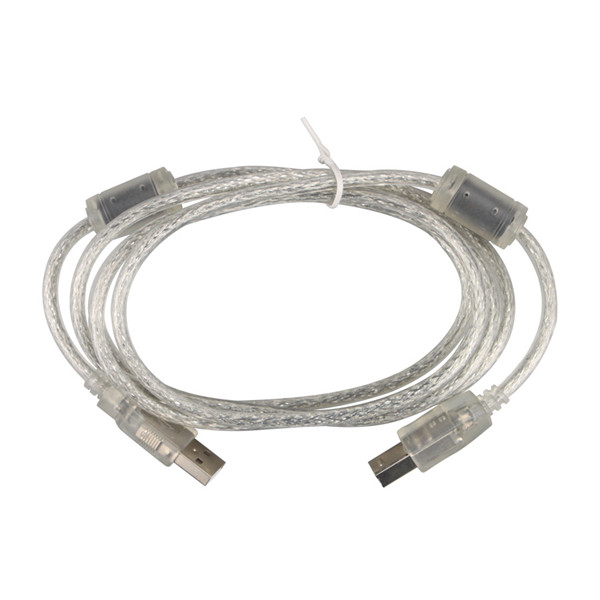

1pc x USB Cable
1pc x CD
1pc x User's Manual
1pc x ICP Downloading cable
1pc x AC/DC Adapter
