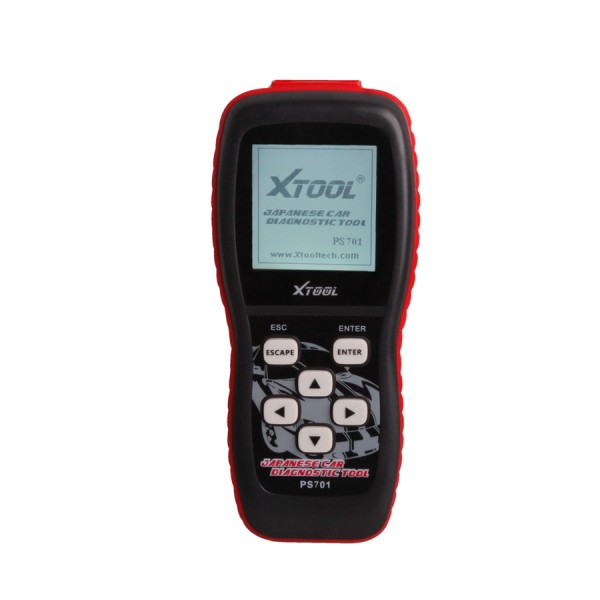

Tool Description

The PS701 PROFESSIONAL JAPANESE MAKES DIAGNOSTIC TOOL is the best solution for diagnose all Japanese makes with JOBD and OBDII protocols. Though small in size, it is powerful enough to do the same work as expensive workshop level scanners, while at the same time, fast and handy compare to workshop level scanners.


Feature

* Natural ergonomic comfort curve design

* Easy-to-read large mono-color screen

* Easy-to-operate large buttons

* Works with latest models of Japanese makes

* Fast in boot and access to vehicle diagnose

* Reads and erases Diagnostic Trouble Codes (DTCs) of engine, ABS, Airbags, Transmission, Radio,

   Climate Control (A/C), Central Electrics, Steering Wheel, Instruments, Immobilizer, etc

* Reads and clears generic trouble codes - KWP-1281 ,KWP-2000(ISO 14230), TP2.0 CAN

* C.A.N.(Controller Area Network) capability

* Retrieves vehicle information (VIN)

* Full function support, including coding and adaptation

* Full system support

* Special function support

* Multi-Lingua platform

* Update via Internet

Function

* Retrieve controller information

* Read DTC

* Clear DTC

* View live data

* Actuation test

* Adaptation

* Coding

* I/M Readiness

Specification

1. Display: Backlit, 160 x160 pixel display with contrast adjustment

2. Operating Temperature: 0 to 50掳C (32 to 122 F掳)

3. Storage Temperature: -20 to 70掳C (-4 to 158 F掳)

4. Relative humidity: <90%

5. External Power: 12.0v Volts provided via vehicle battery

6. Mainframe power: 3W

7. Mainframe dimensions: 225mm Length 98mm Width 36mm Height

8. exterior memory: TF card

9. Language: English

Software display
