Home >Auto Diagnostic Tool >Autel Tech Tools > Scan Tool
Scan Tool
/upload/20140226170255PicURL.jpg
MaxiDiag Elite Diagnose FRENCE & EDALI Vehicles MaxiDiag Elite MD704 (All Systems DS)
·Product Category:Scan Tool
·Item No:CD110027
·Product Model:
·Product Weight:2.0kg
·MOQ:1PCS
·Retail Price:US$250
·In Stock:10
Qty:
Details Description

MaxiDiag Elite Diagnose FRENCE & EDALI Vehicles MaxiDiag Elite MD704 (All Systems DS)



Autel' new MaxiDiag Elite Series, the most advanced and multifunctional scan tools powered by its exclusive technology, are designed for technicians to troubleshoot either the basic four systems or all the systems for most of major vehicles on the road today. This new diagnostic platform delivers fast and easy diagnostics at the right price.

Vehicle Coverage: Peugeot, Citroen, Renault, Dacia, Fiat, Abarth, Alfa-Romeo, Lancia.




Features

1. One tool can do it all-reads and clears trouble codes on either the basic 4 systems (engine, transmission, ABS and airbag) or all the systems

2. Turns off warning lights for all major Asian vehicle

3. Reads live datastream

4. Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame, I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information

5. Enhanced OBD II Mode 6

6. OBD II code tips guide technicians to the root cause of trouble code faster

7. Data graphing

8. One year free software upgrade on-line

9. Prints data via PC

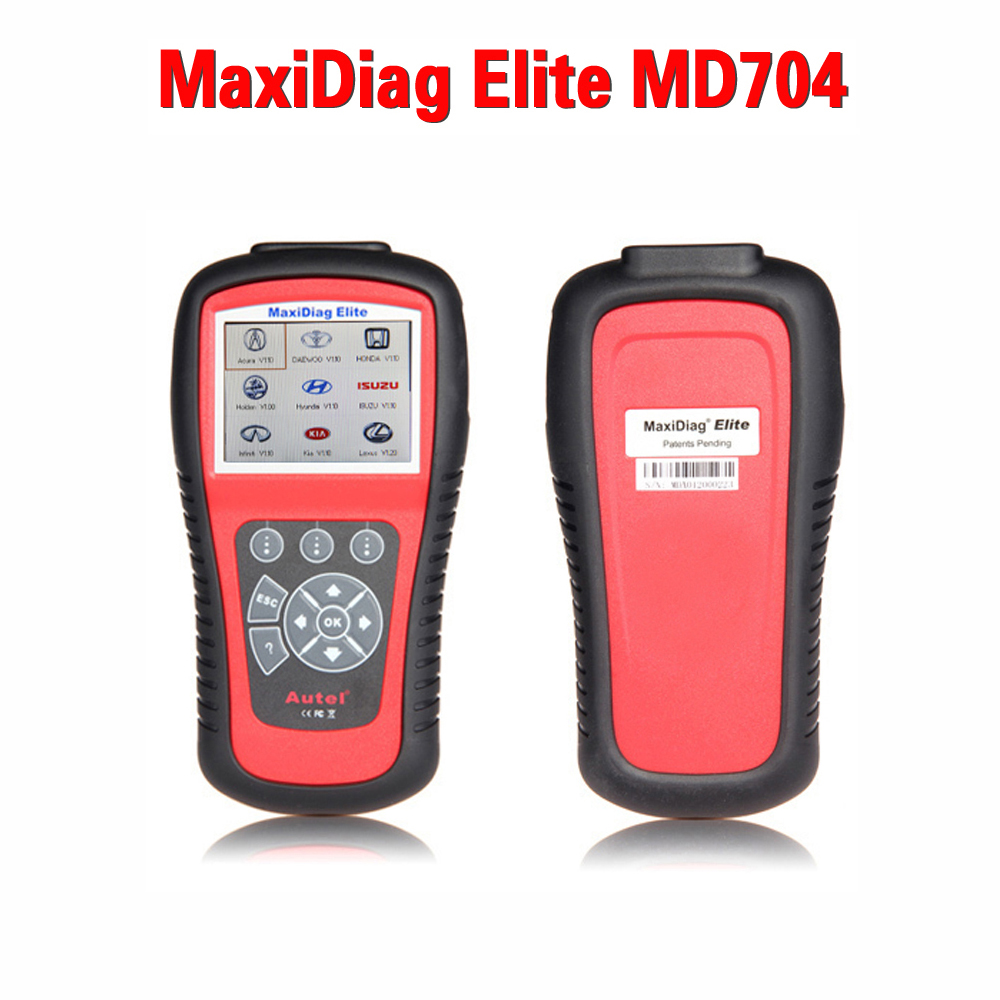

Tool Description

1) CONNECTOR -- Connects the scan tool to the vehicle鈥檚 Data Link Connector (DLC).

2) SD Card Slot -- Holds the System SD card.

3) LCD DISPLAY -- Indicates test results. TFT color display (320 x 240 dpi).

4) FUNCTION BUTTON -- Corresponds with "buttons" on screen for executing commands.

5) ESC BUTTON -- Cancels a selection (or action) from a menu or returns to the previous screen.

6) HELP BUTTON -- Provides help information and Code Breaker function.

7) UP SCROLL BUTTON -- Moves up through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves up through the current screen to the previous screens for additional data. When looking up DTC, it is used to change value of selected character.

8) DOWN SCROLL BUTTON -- Moves down through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves down through the current screen to next screens for additional data. When looking up DTC, it is used to change value of selected character.

9) LEFT SCROLL BUTTON -- When look up DTC definitions, moves to previous character and views additional information on previous screens if DTC definition covers more than one screen; views previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.

10) RIGHT SCROLL BUTTON -- When look up DTC definitions, moves to next character and view additional information on next screens if DTC definition covers more than one screen; views next screen or next frames of recorded data.. It is also used to view next trouble code when viewing DTCs.

11) OK BUTTON -- Confirms a selection (or action) from a menu.

12) External DC Power Port -- Connects the 12 volt power adapter to power the tool when disconnected from the vehicle.

13) USB CONNECTOR -- Connects the scan tool to the PC for printing.




Specifications

1) Display: TFT color display (320 x 240 dpi)

2) Operating Temperature: 0 to 60掳C (32 to 140 F掳)

3) Storage Temperature: -20 to 70掳C (-4 to 158 F掳)

4) External Power: 12.0 to 18.0 V power provided via vehicle battery or adapter.

5) Length\Width\Height: 212 mm (8.35")  110.5 mm (4.35") 37.5 mm (1.48")

6) Weight: 0.28kg(without wire) 0.484kg(with wire)




Accessories

1 x Carry case

1 x SD Card

1 x CD

1 x USB Cable

1 x OBDII Cable

1 x User's Manual
