Home >Auto Diagnostic Tool >Autel Tech Tools > Code Reader
Code Reader
/upload/20140226161312PicURL.jpg

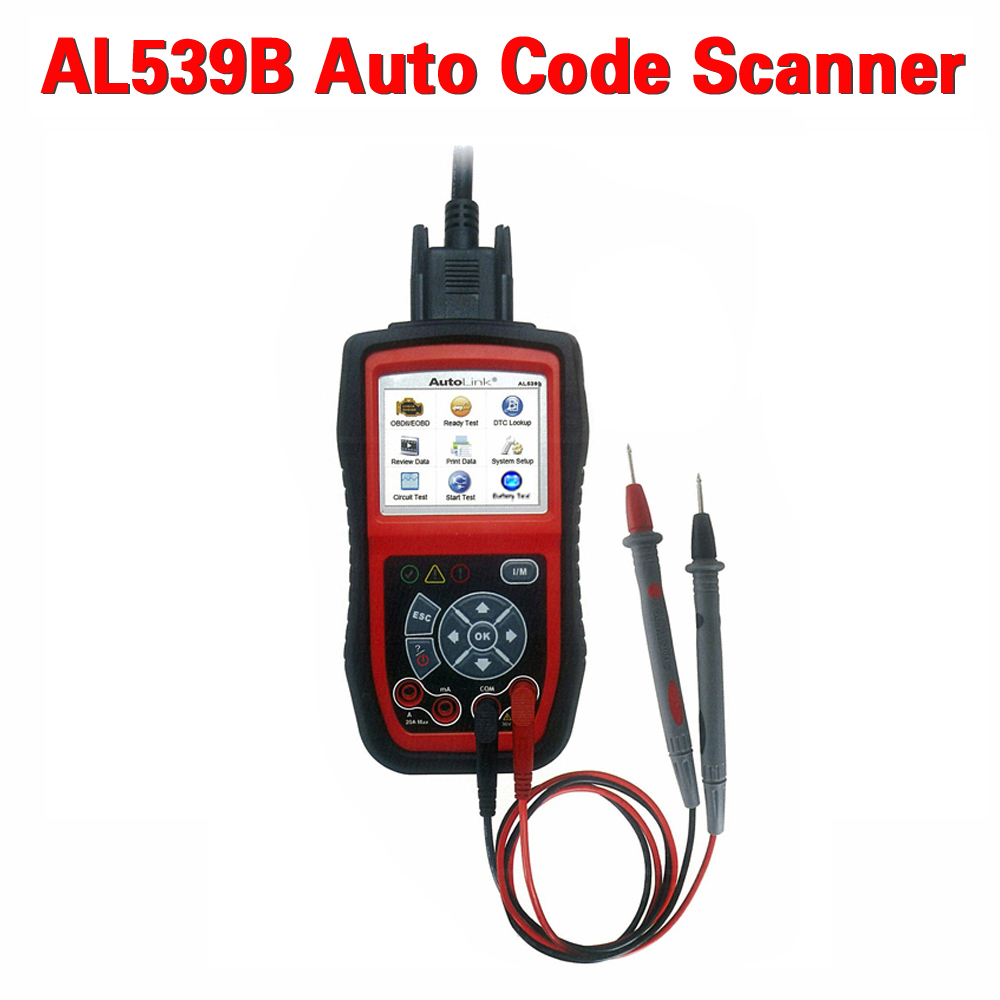

Autel NEXT GENERATION OBDII&CAN SCAN TOOL AutoLink AL539B
·Product Category:Code Reader
·Item No:CD110014
·Product Model:
·Product Weight:1.2kg
·MOQ:1PCS
·Retail Price:US$145
·In Stock:10
Qty:
Details Description

Scanner Tester AutoLink AL539B will allow you to:

1. Diagnose all vehicles from model year 1996 protocol OBD II

2. Diagnose battery, including AGM, and system start-up cars

3. Diagnose charging system

4. Finding fault in the electric, using a multimeter function (measurement of voltage, resistance, current)

5. Color TFT screen and built-in speaker will make your work more comfortable

6. Scanner Tester AutoLink AL539B simple and friendly to use, which makes it not replaceable assistant in troubleshooting any automotive service


Functions

Scanner mode OBD II:

* Diagnosis of all cars from 1996 that support the protocol OBD II (including CAN)

* One-Click I / M Readiness Key - a unique patented One-Click I / M Readiness Key allows you to quickly view the status of monitor systems

* DTC - Reading and decoding of codes on common protocols marked with (P0, P2, P3, and U0), as well as the faults at the manufacturers protocol (P1, P3, and U1)

* DTC Erase - removing errors and Off self-diagnostic indicator Check Engine

* Monitor Status - Display and monitoring of the status of readiness monitors I / M

* LIVE DATA - Displays the current parameters of PCM

* FREEZE FRAME - display still images

* GRAPH - graphical display of parameters

* Info - technical tips on finding the causes of errors for quick and accurate diagnosis can save time when troubleshooting

* Save - save the diagnostic results for further analysis

* Tester mode starting and charging systems, car AutoLink AL539B


Specifications

TFT color display: 320 x 240 dpi

Operating temperature: 0 to 60 掳 C (32 to 140 F 掳)

Storage temperature: -20 To 70 掳 C (-4 to 158 F 掳)

Dimensions: 175 mm (6.91")\ 96.6 mm (3.80")\ 37 mm (1.46")

Weigh: 0.3kg (0.8lb, without cable) or 0.68kg (1.82lb, with cable)

Options AutoLink: AL539B


Accessories

* 1 x AutoLink AL539B

* 1 x CD

* 1 x USB Cable

* 1 x OBDII cable

* 1 x User Manual
