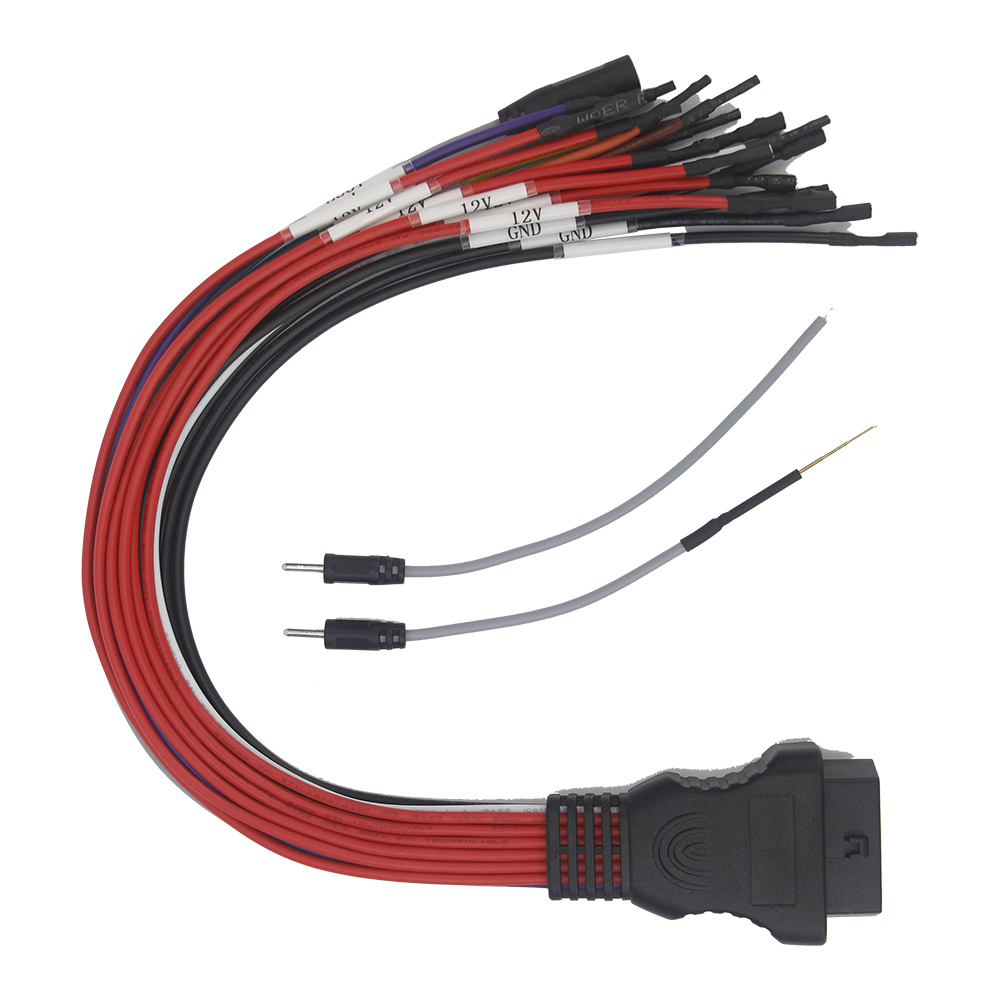

OBDSTAR ECU FLASH Cable for X300 DP Plus and Pro4
·Product Category:OBDSTAR
·Item No:CU110171
·Product Model:
·Product Weight:0.1kg
·MOQ:1PCS
·Retail Price:US$45
·In Stock:10
Qty:
Details Description

 Product Description

OBDSTAR ECU FLASH Cable for X300 DP Plus and Pro4



OBDSTAR ECU FLASH Cable for X300 DP Plus

Support ECU List:
BOSCH EDC17C55, EDC17C63, MED17.5, MED17.5.1, MED17.5.2, MED17.5.5, MED17.5.5, MED17.5.21, MED17.5.25, EDC17CV44, EDC17CV54, EDC17C54, EDC17C64, MED17.1.6, ME17.1.6, EDC17C81, EDC17C53, EDC17C46, ME17.5.6, MED17.5.20, EDC17U01, MED17.4.4, EDC17CP44, ME17.1.1, MED17.1.1, ME17.5.20, EDC17CV45, EDC17CV41, EDC17C04, EDC17CP52 etc.

Equipment Overview:




1. Diag cable OBD connector(male)
2. P002 adapter
3. Connect P002 connector (female)
4. Connect vehicle OBD diag connector (male)
5. Lock plug
6. Relay plug
7. Battery clip (positive pole)
8. Jumper plug (relay)
9. Jumper plug (fuse blue)
10. Jumper plug (fuse brown)
11. Connect P002 connector TOYOTA-1 female (BENCH)
12. Connect ECU connector TOYOTA-1 female (BENCH)
13. TOYOTA-1 cable 12V power supply (BENCH)

BOOT Mode Connecting Methods

Step 1: Connect 1, 2, 3 together as pic below:



Step 2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step 3: connect 12V power with diagnostic device;
Step 4: read data on diagnostic device

Package includes:

1pc x ECU Flash Adapter
