1. Support Color, the Multiple Graphics Streams

2. Multi-Language Supported: English, French, Spanish

3. Support Fault Code Query

4. Update: Software Upgrade via USB port network  Quick upgrade via USB 2.0

Features:

* Full support OBDII functions

* Data Flow graphics capabilities, allowing more intuitive observation

* Have trouble code, data stream and other information queries

* Silicone keys, 6 key operation more comfortable and convenient

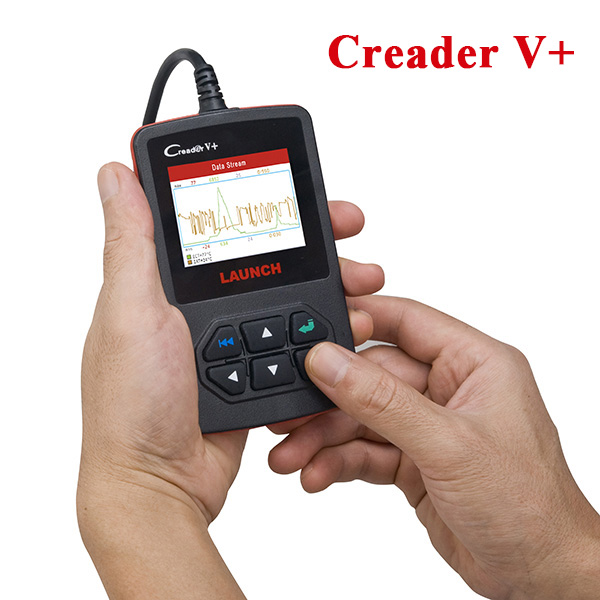

Advantage of Launch Creader V+:

* Support Agreement: ISO9141-2, ISO14230-4, SAEJ1850, ISO15765-4

* Support Mode $ 01 reading dynamic data flow, fault indicator light, ready state

* Support Mode $ 02 freeze frame data query

* Support Mode $ 03 reading current fault codes

* Support Mode $ 04 clear fault codes

* Support Mode $ 05 oxygen sensor detection test

* Support Mode $ 06 monitor specific vehicle monitoring system

* Support Mode $ 07 pending fault code reading

* Support Mode $ 08 monitor vehicle systems or components

* Support Mode $ 09 to read vehicle information

* Support Mode $ 0A permanent fault code reading

Parameter:

Screen: 2.4 TFT 176 * 220 dots LCD display

Input voltage range: 9-18V

Operating current: <100mA@12V (Typical)

Power consumption: <1.2W (Typical)

Operating temperature: 0 C~50 C

Storage temperature: -20 C-70 C @ RH60%

Outline dimension: 120mm * 75mm * 20 mm (L*W *H)

Weight: <200g

Accessories:

* 1pcs * Launch Creader V+

* 1pcs * User's Manual -- Instructions on tool operations.

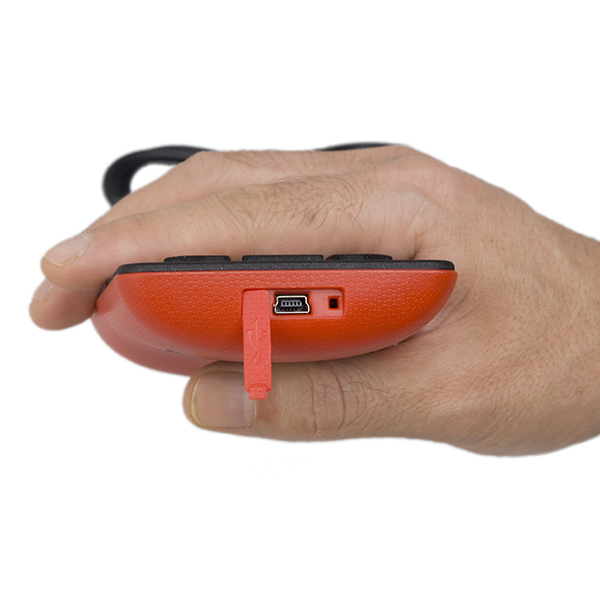

* 1pcs * USB cable -- Connect to a computer for upgrading online.
