DPF Doctor Diagnostic Tool For Diesel Cars Particulate Filter do DPF Reset and Regeneration for Opel, Ford, Peugeot, Citroen, Renault, Volvo, LandRover, Fiat total 16 car makers from American,European and Asia vehicles. DPF Doctor reliable USB connection ensures its stability in complex electromagnetism.

DPF Doctor A Specific Diesel Particulate Filter Service Tool Base On PC

Notice:
1. Update by Email, please provide us the serial number,then we send the update file to you via Email
2. Support System: Windows XP Only



The DPF Doctor Tool initially covers a substantial range of application numbers in the DPF Doctor range.Simple to operate, the bespoke tool uses a push-button operation and supports vehicles from 2000 onwards.



DPF Doctor Diagnostic Tool Feature and Functions:



Only one connector for all car makers

Read Control Module ID

Read/Erase Fault code

Read data stream and Inspection/Maintenance Data

Initialization FAP Filter additive Quantity

New FACM Module

Diesel Particulate Filter Replacement

Diesel Particulate Filter Static Regeneration

Diesel Particulate Filter Dynamic Regeneration

Replace Or Fill Additive Tank

Additive Refill



DPF Doctor Mode List:



Supported Model List Details-Full



Opel

Ford

Peugeot

Citroen

Renault

Volvo

LandRover

Fiat

Alfa

Saab

Hyundai

Kia

Benz

Chevrolet

Holden

Nissan etc.



DPF Doctor Specification



CPU: Pentium 4 (or Celeron R series) or above

Memory: Minimum 256MB

Operating system: WINDOWS XP/ Win 7

Power supply: DC 12V, AC 110~250V 50/60Hz;

Power: DC 8~12V

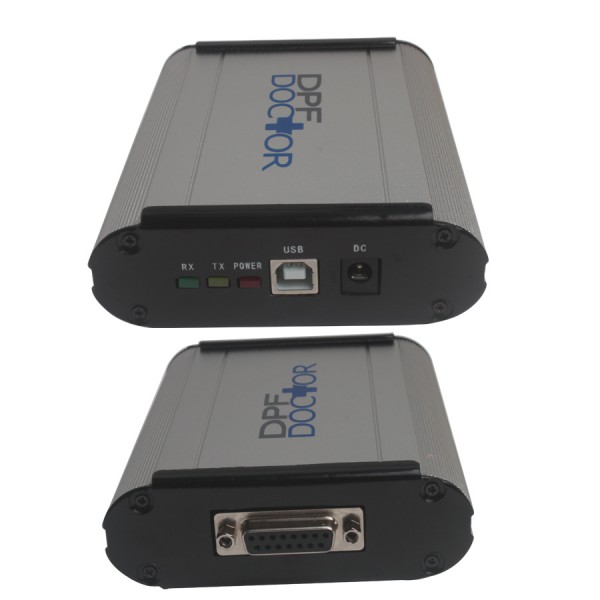

Port: Diagnostic port, USB port, Power port.

Storage temperature: -30~90ºC

Working temperature: -10~70ºC

Humidity: <90%

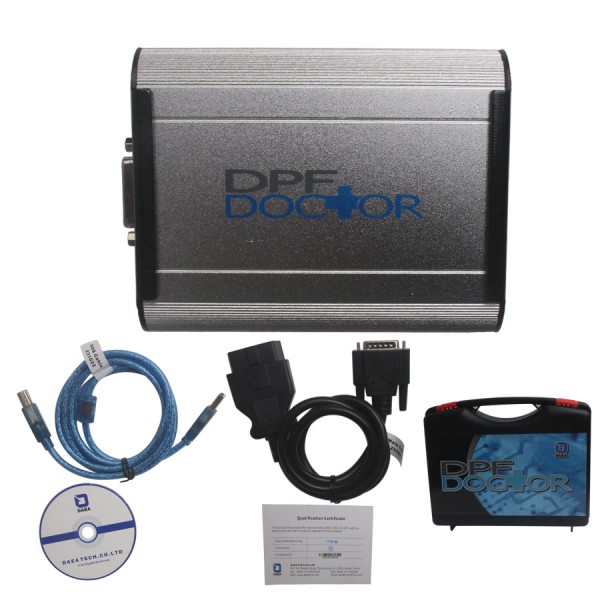

Packing List:

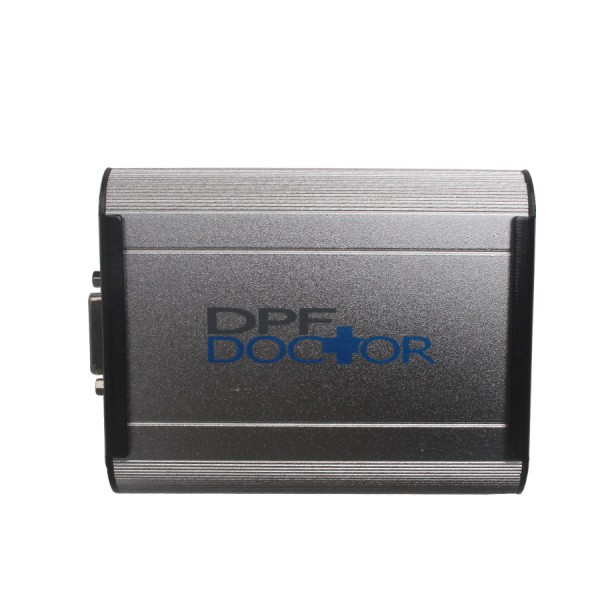

1pc x DPF DOCTOR Main Unit

1pc x Installation CD (Software and Manual)

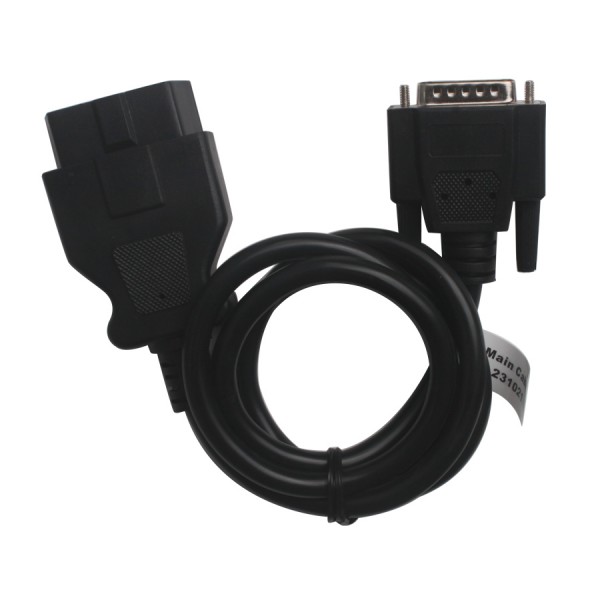

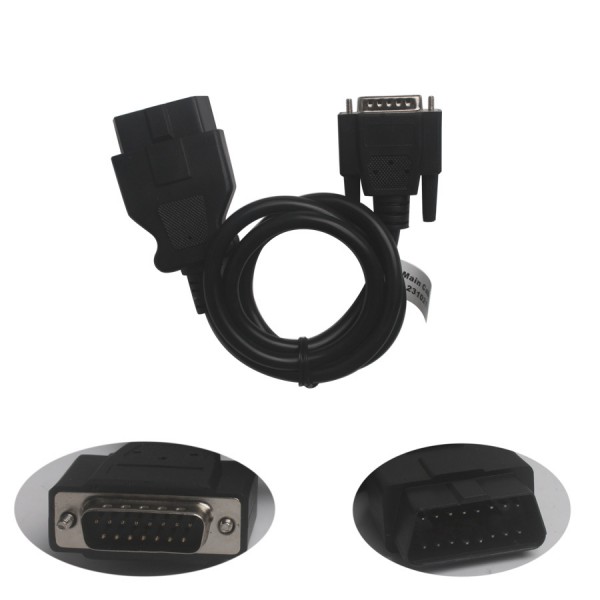

1pc x Connector(Connect the Main Unit and Vehicle)

1pc x USB Cable







FAQ:

Q: What is difference between the SP188 and SC198?

A: SC198 no need connect with PC, but SP188 need. For function,they are same.
